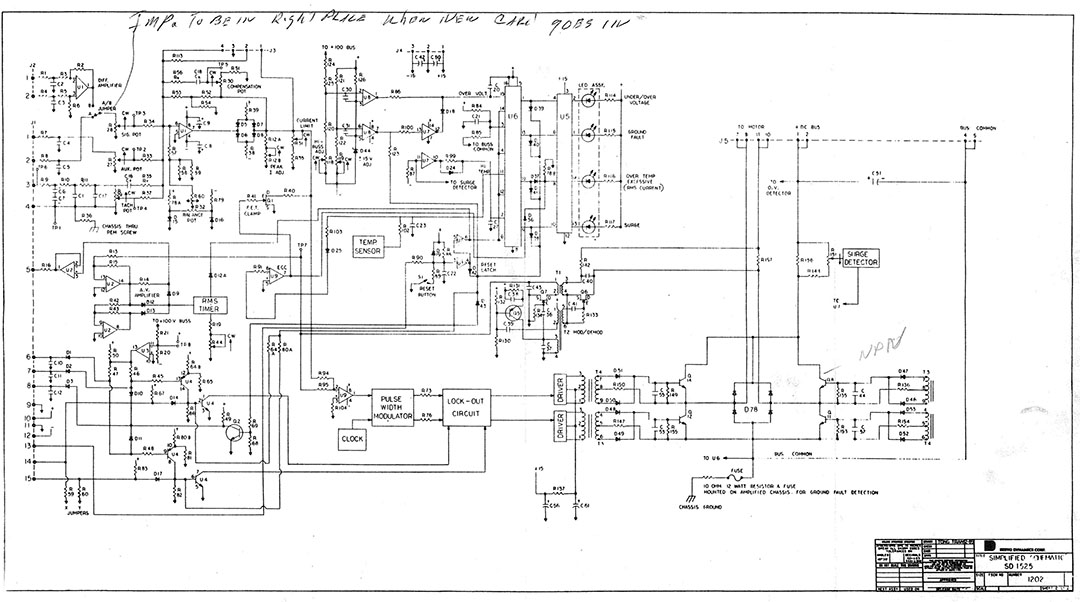

Tree 325 Schematic - Simplified Schematic.  Click on Image for PDF file.
Tree 325 Simplified Schematic


001

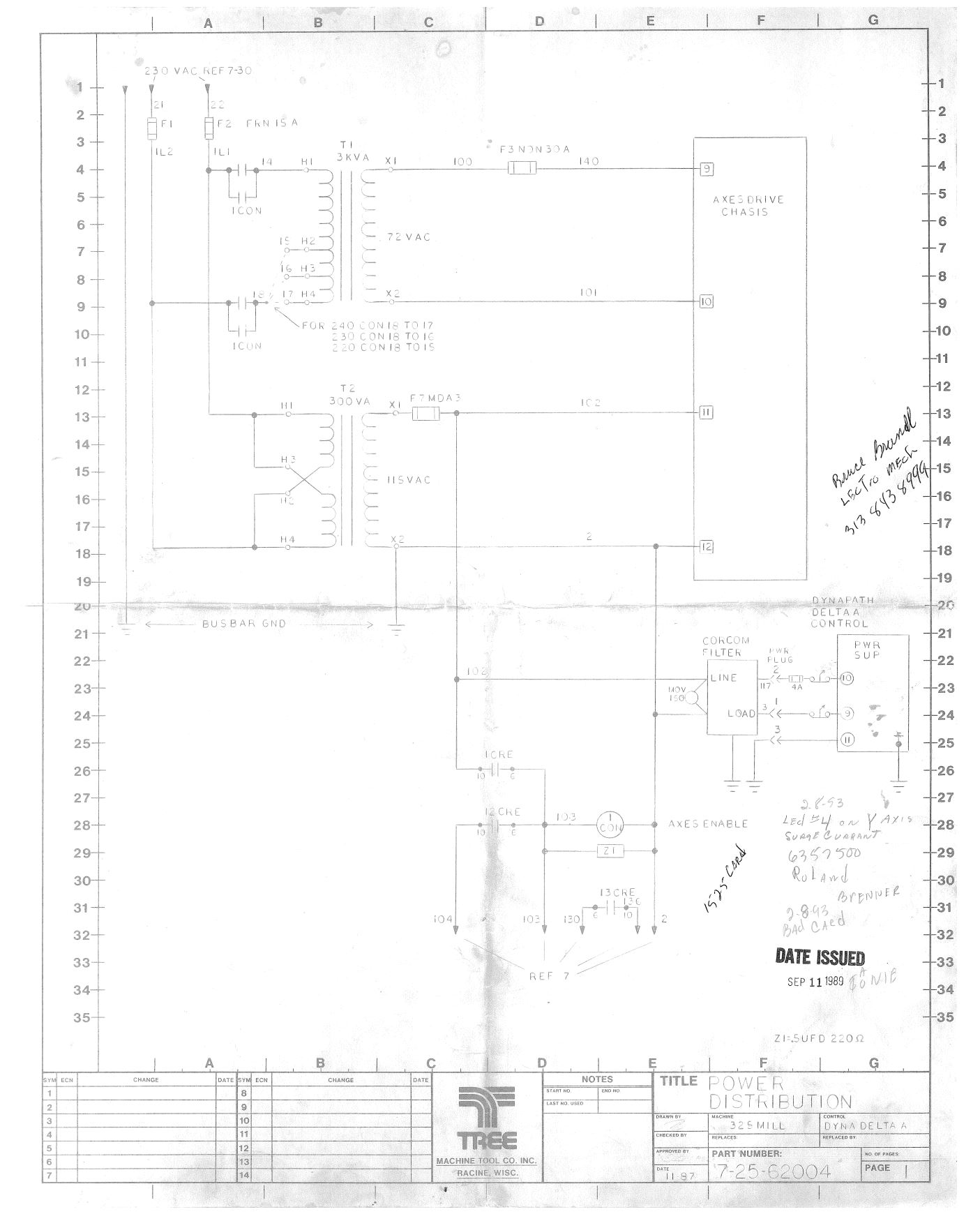

Tree 325 Schematic - Page 1.  Click on Image for PDF file.

Tree 325 - Schematic - Page1

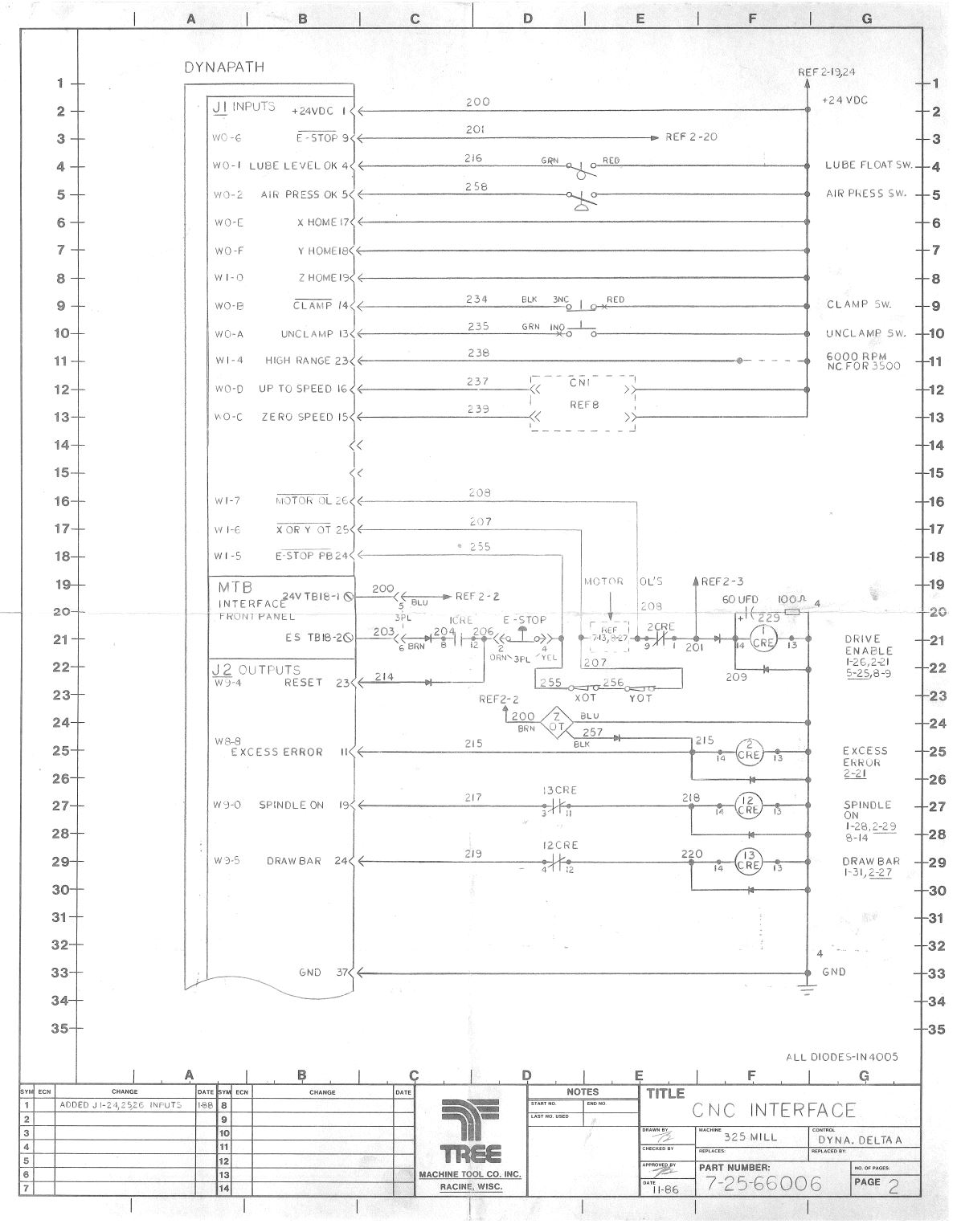

002Tree 325 Schematic - Page 2.  Click on Image for PDF file.Tree Schematic Page2

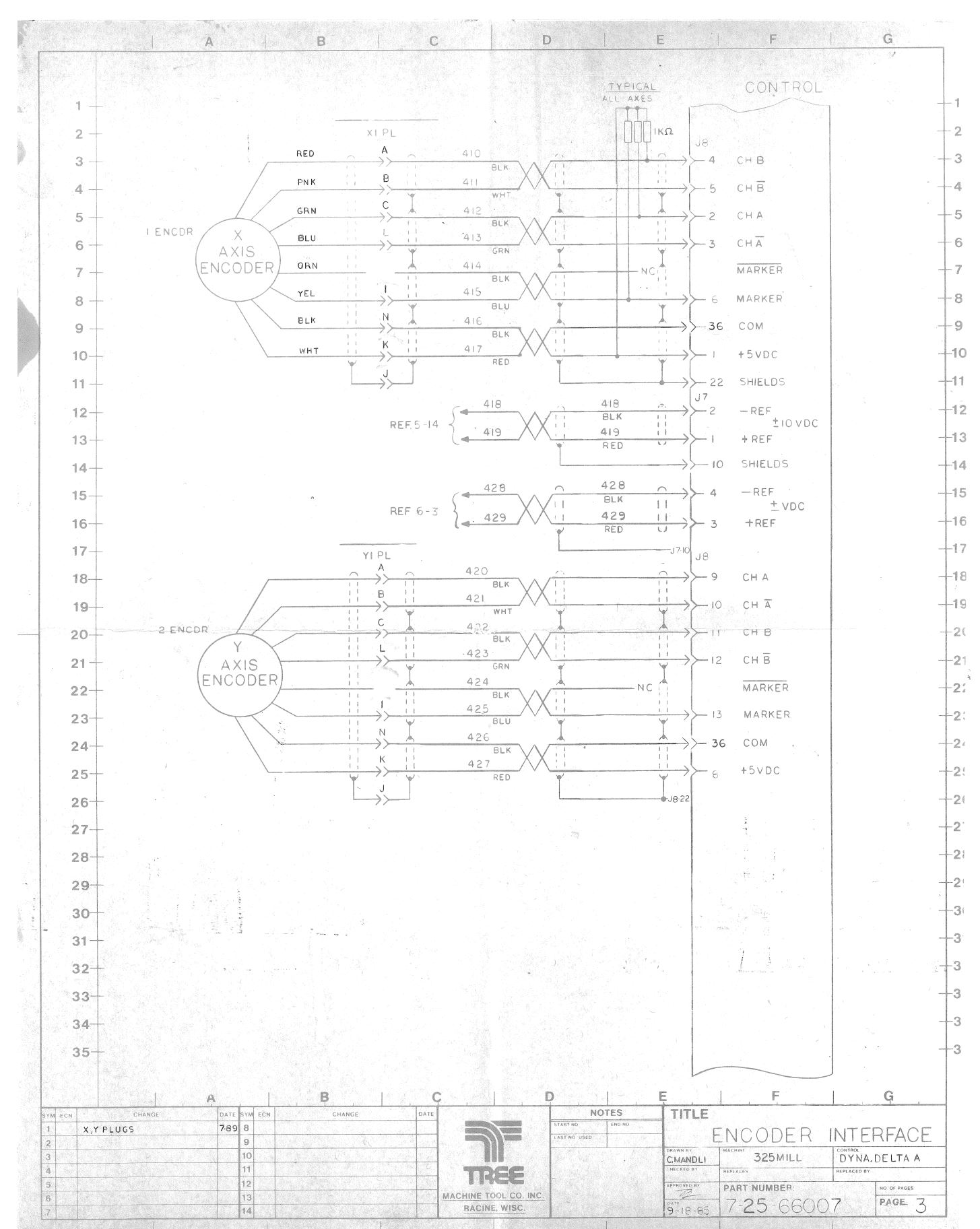

003Tree 325 Schematic - Page 3.  Click on Image for PDF file.Tree 325 Schematic Page 3.

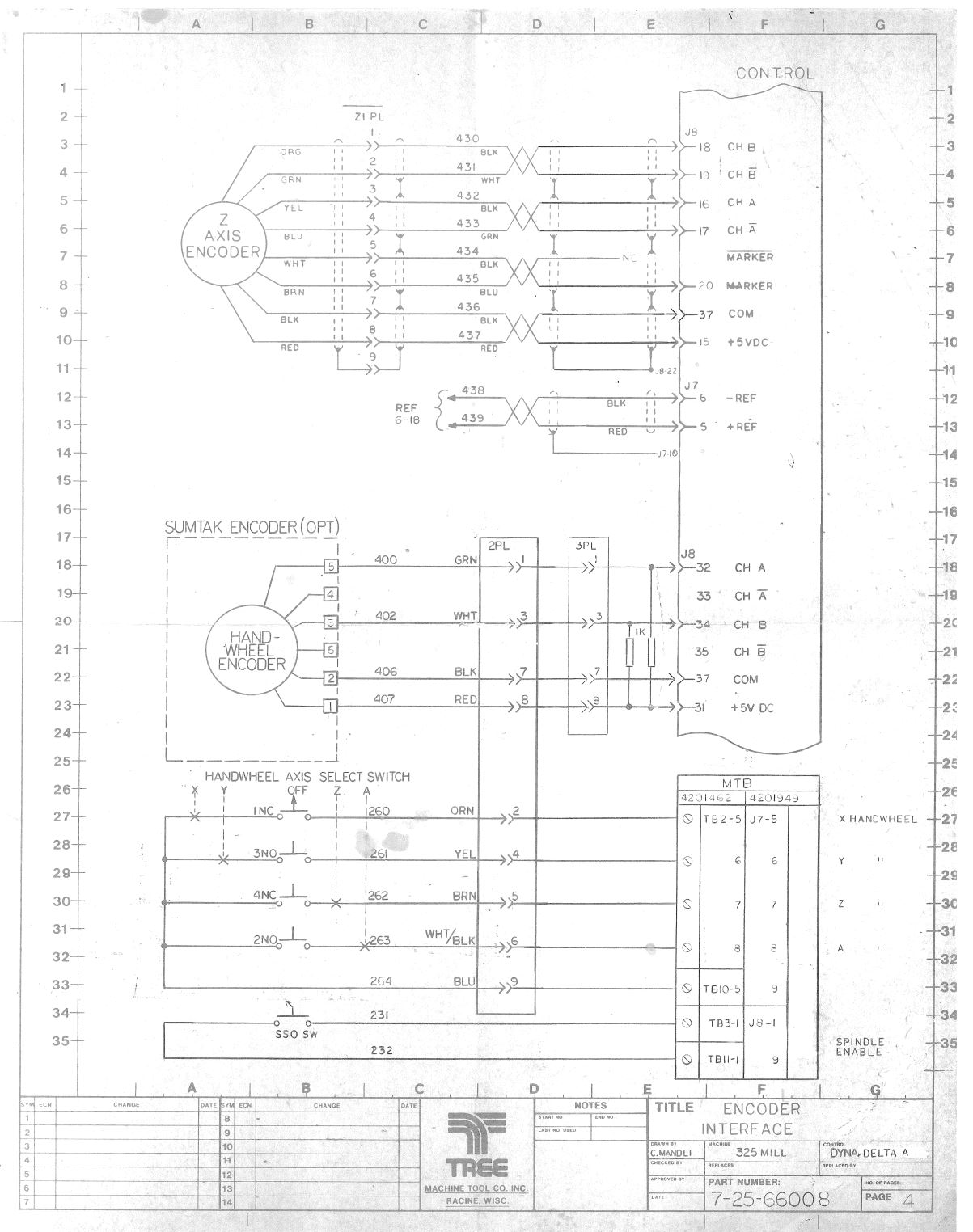

004Tree 325 Schematic - Page 4.  Click on Image for PDF file.Tree 325 Schematic Page 4.

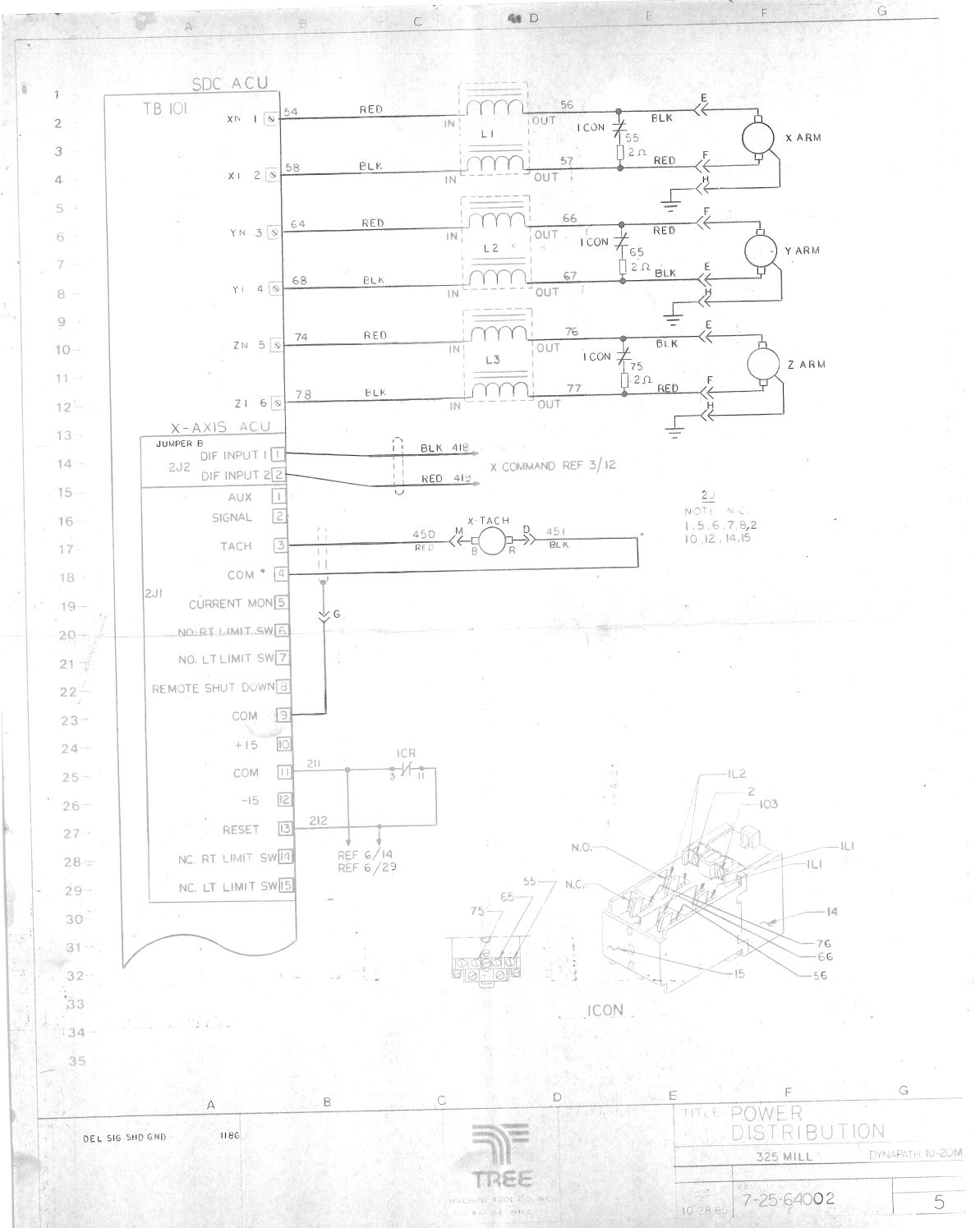

005Tree 325 Schematic - Page 5.  Click on Image for PDF file.Tree 325 Schematic Page 5

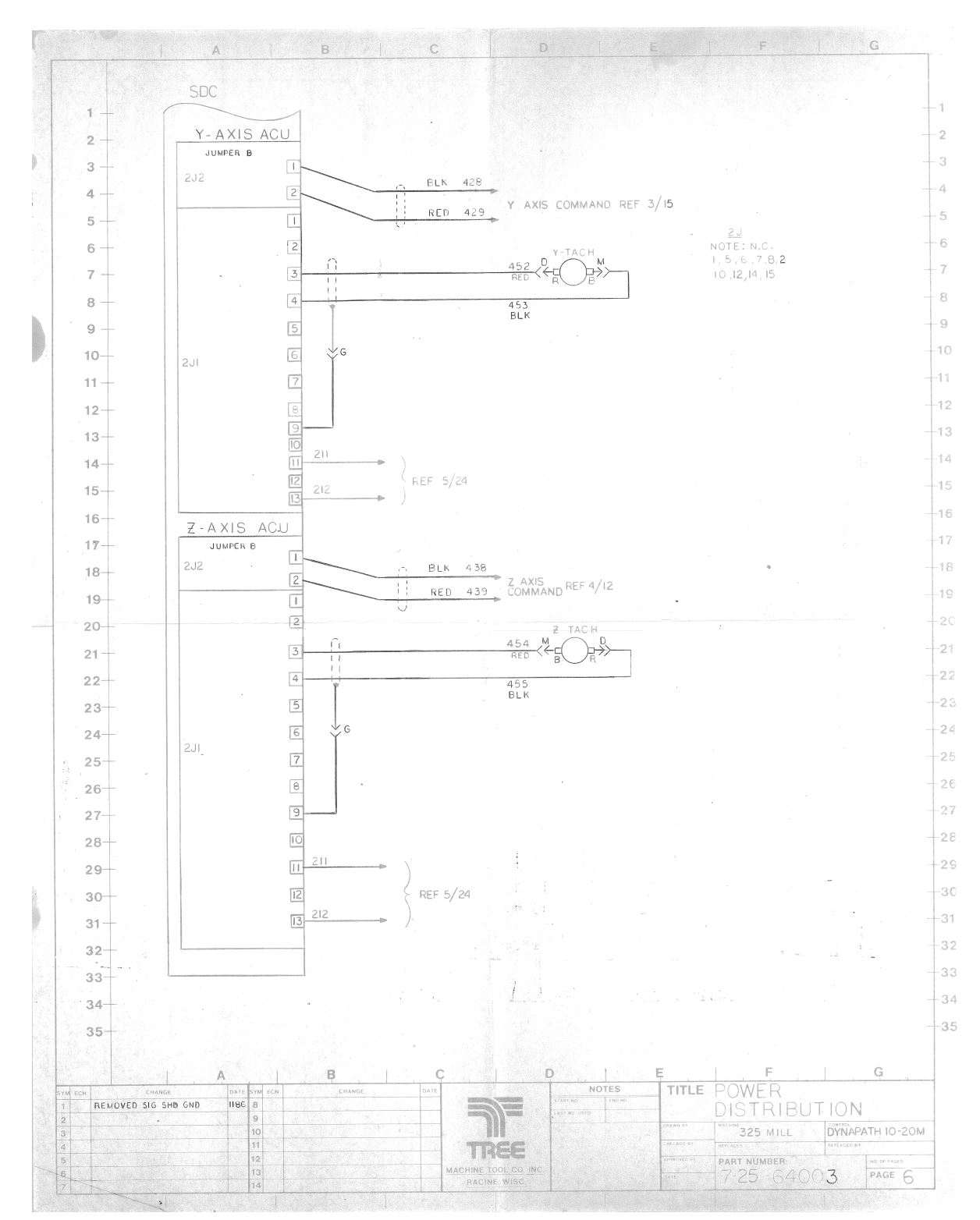

006Tree 325 Schematic - Page 6.  Click on Image for PDF file.Tree 325 Schematic Page 6

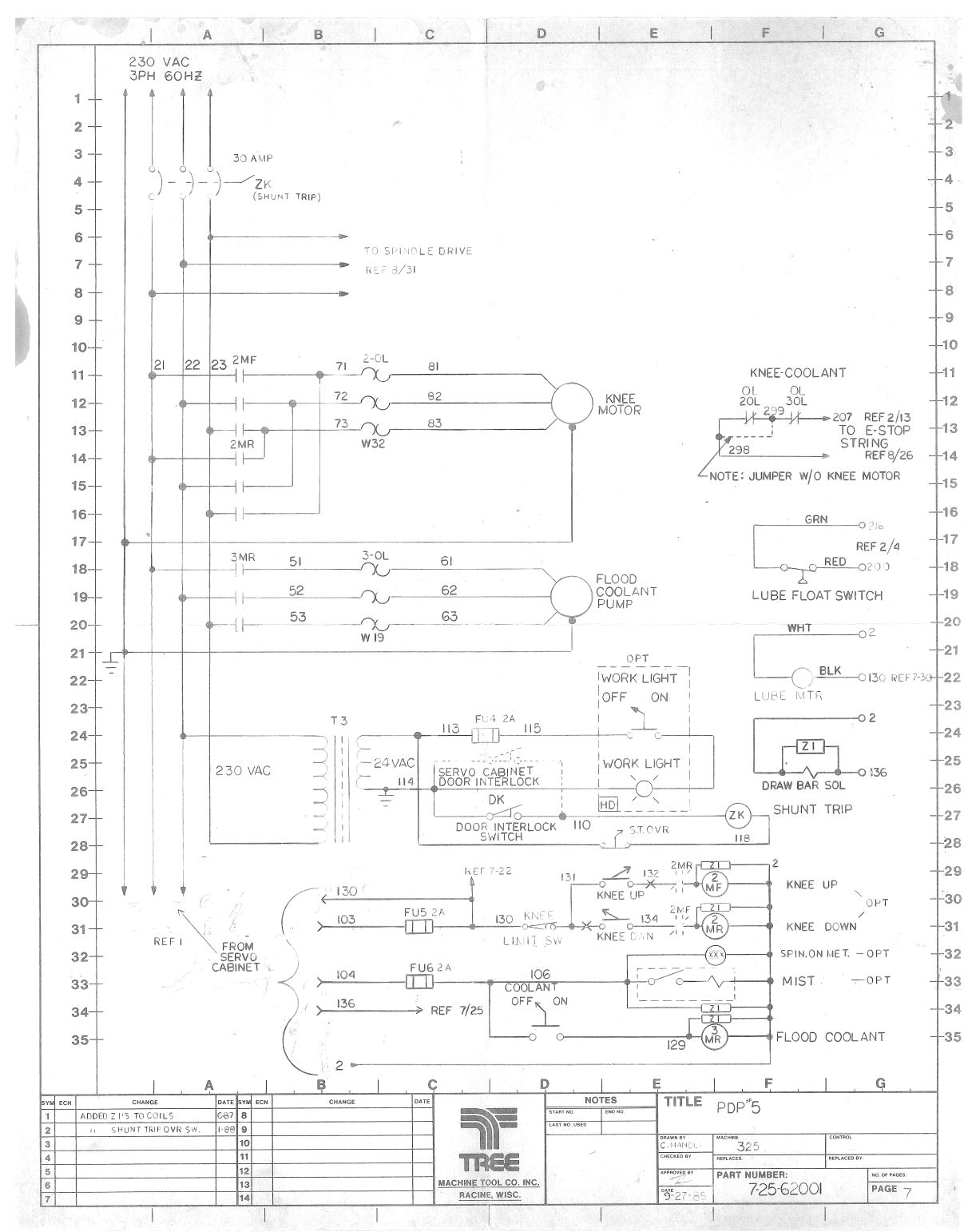

007Tree 325 Schematic - Page 7.  Click on Image for PDF file.Tree 325 Schematic Page7

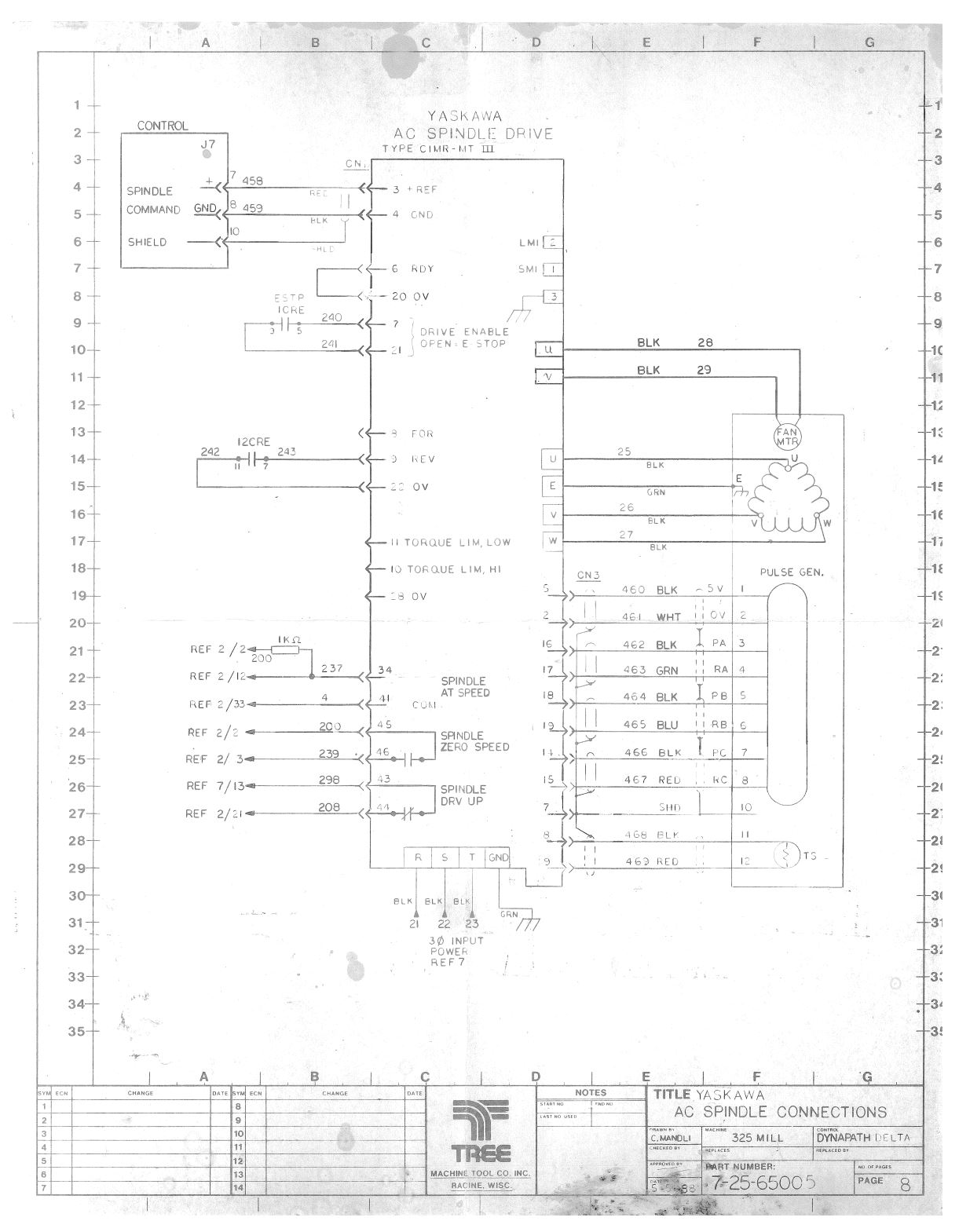

008Tree 325 Schematic - Page 8.  Click on Image for PDF file.Tree 325 Schematic Page 8

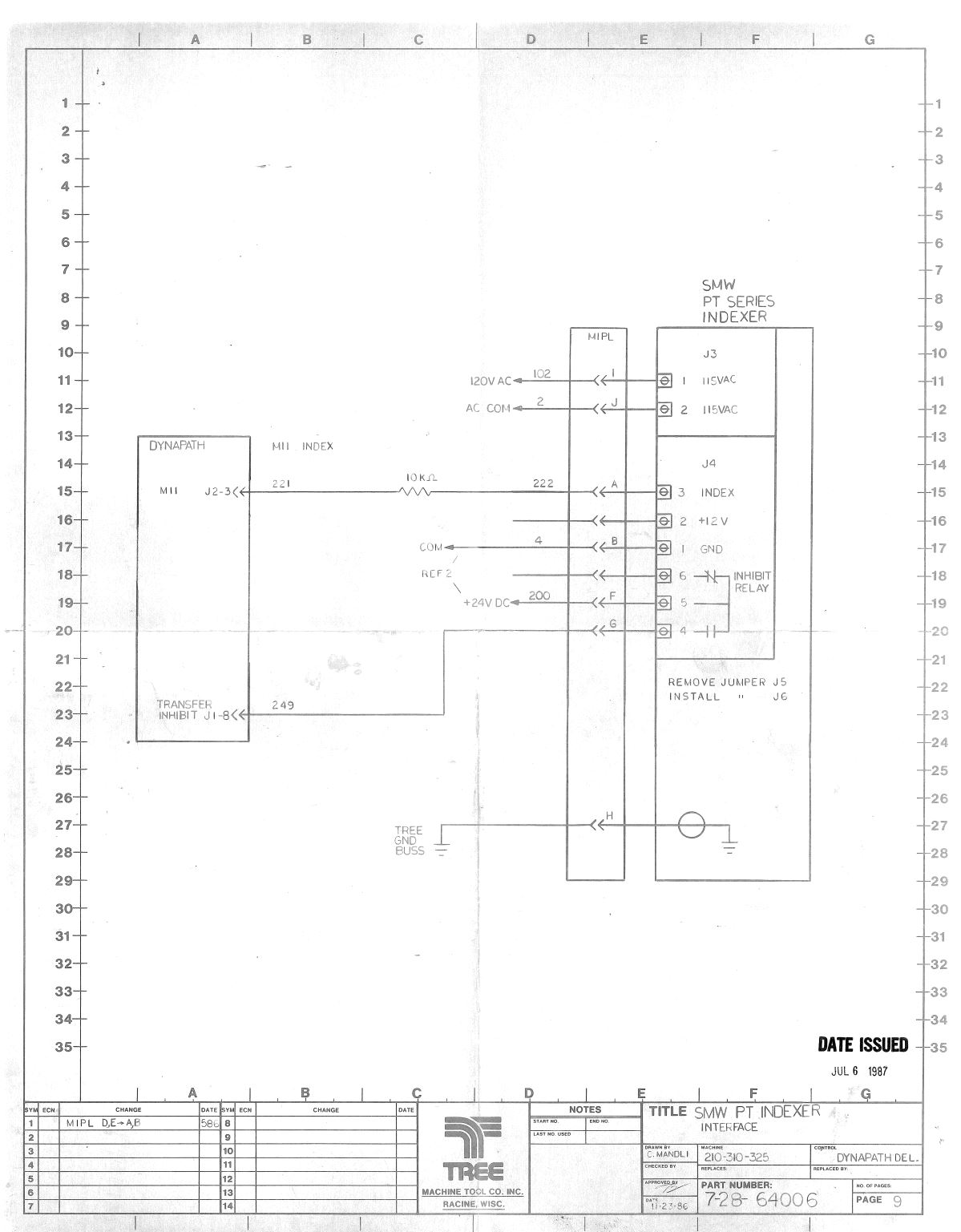

009Tree 325 Schematic - Page 9.  Click on Image for PDF fileTree 325 Schematic Page 9
010Tree 325 Schematic - Page 10.
I do not have Page 10.  If you do please share and I will add it here.		I do not have Page 10.  If you do please share and I will add it here.

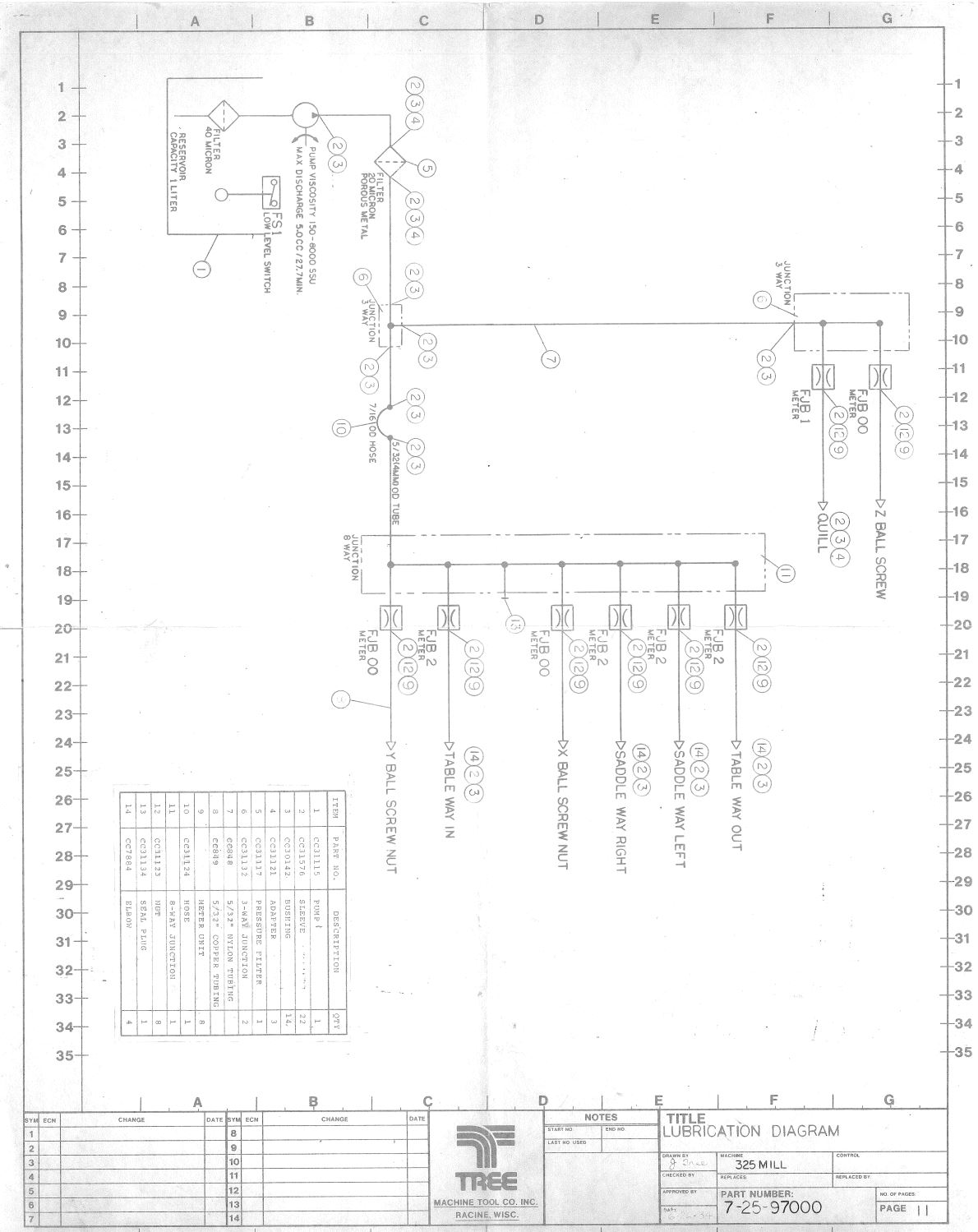

011Tree 325 Schematic - Page 11.  Click on Image for PDF fileTree 325 Schematich Page 11
