| 001 |

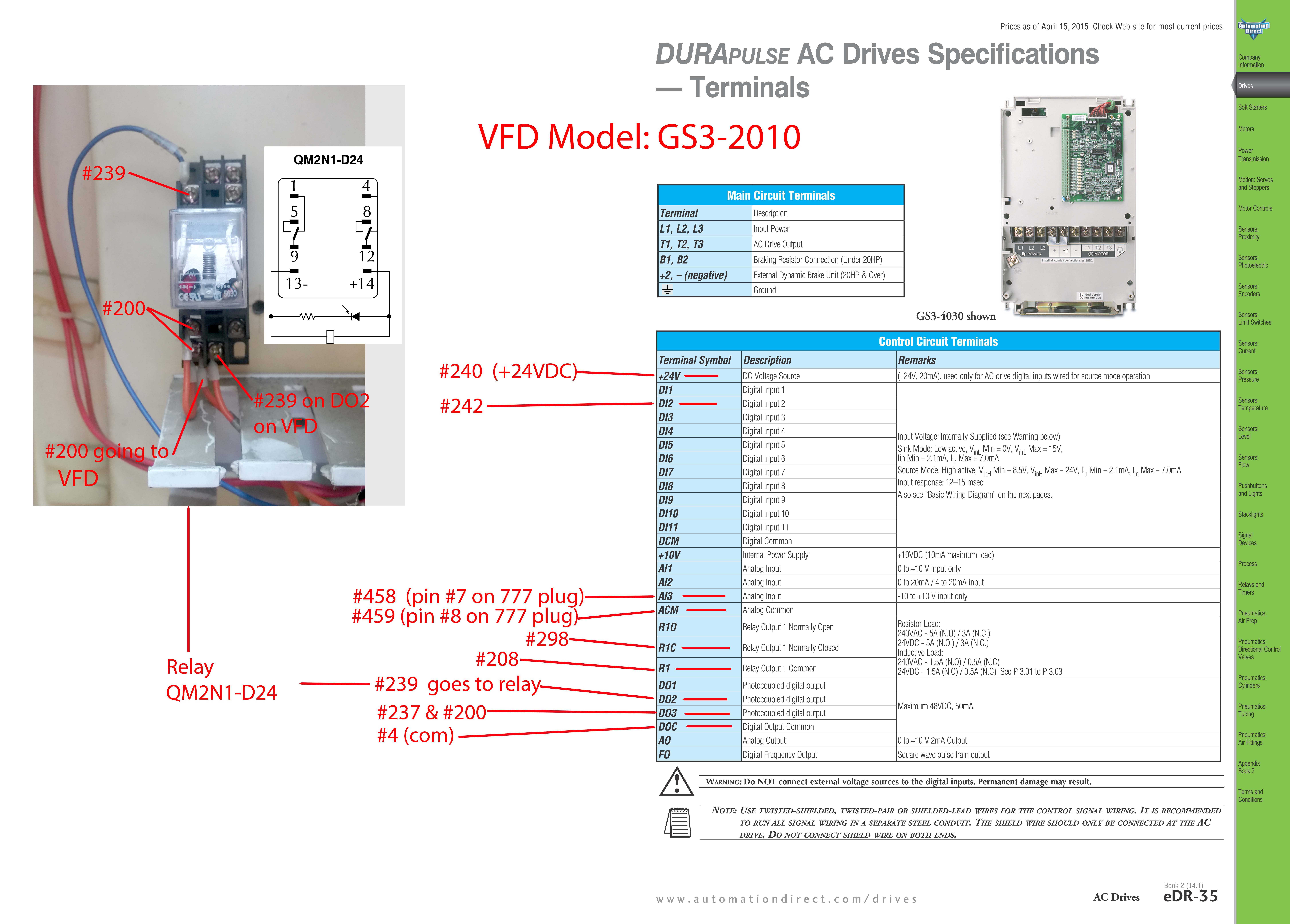

VFD-Existing Wiring on Spindle that worked when the machine was taken out of service Click on Image for PFD file of VDF Manual. |  | |

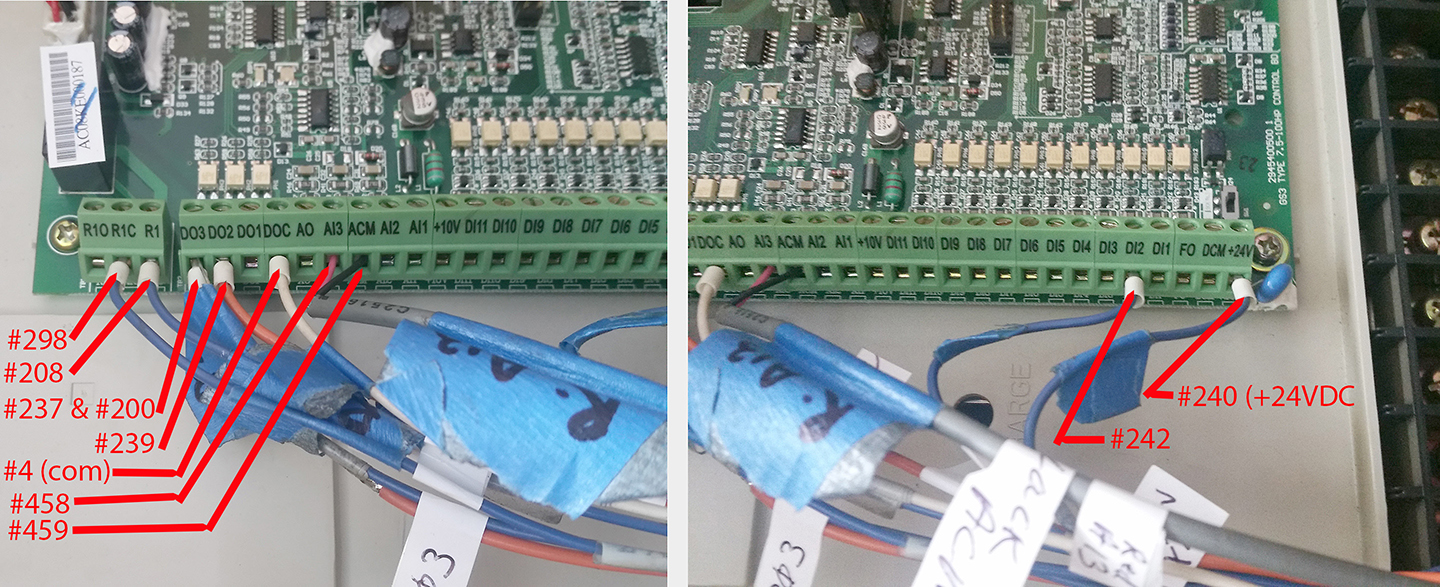

| 002 | This is the existing working Spindle wiring of the Tree325 to the VFD before it was taken out of service which worked ... so I am told. Click on image to Larger Image. |  | |

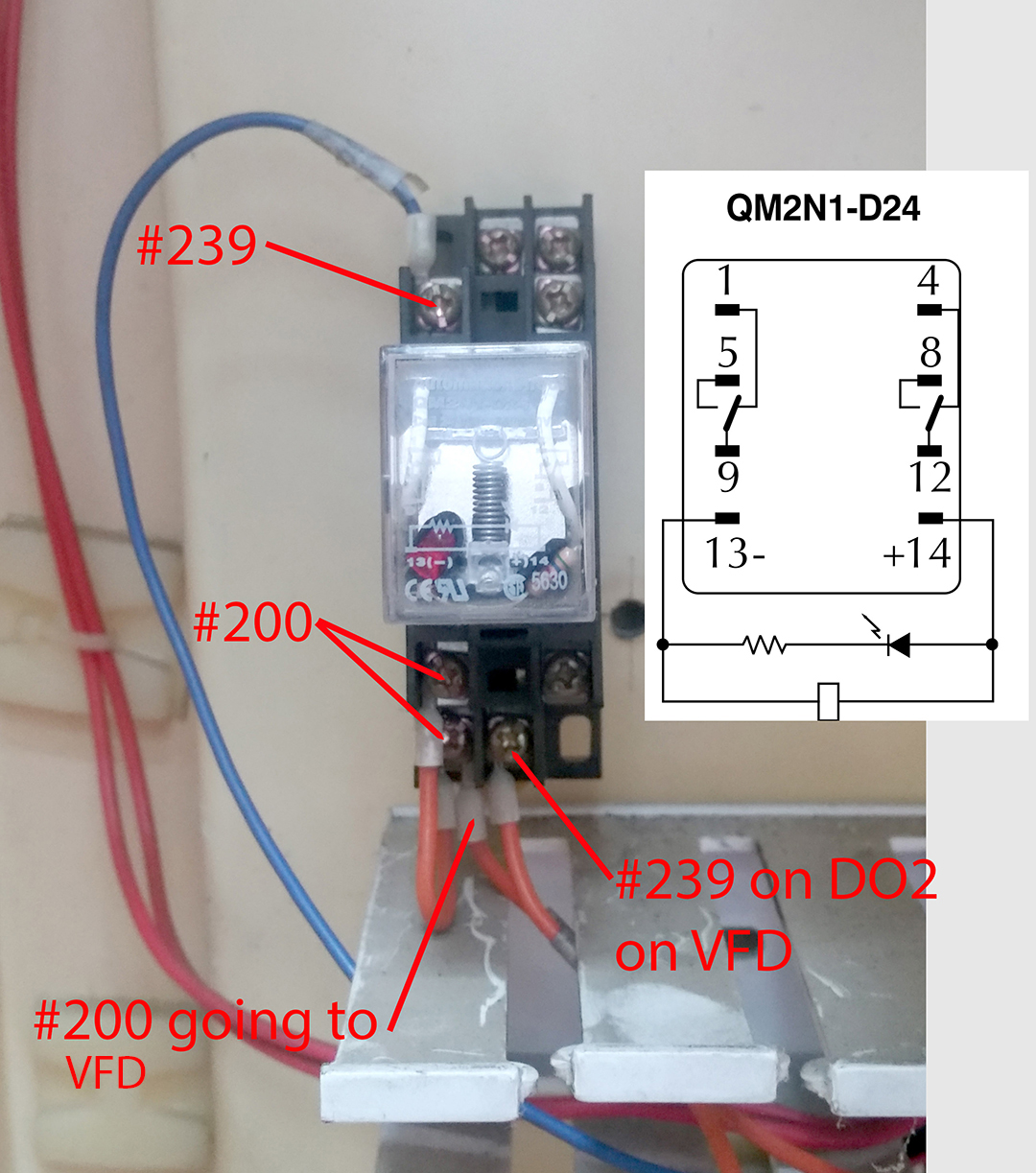

| 003 | This is the Spec Page of the Relay QM2N1-D24 in the image above. Click on the image for the PDF file. |  | |

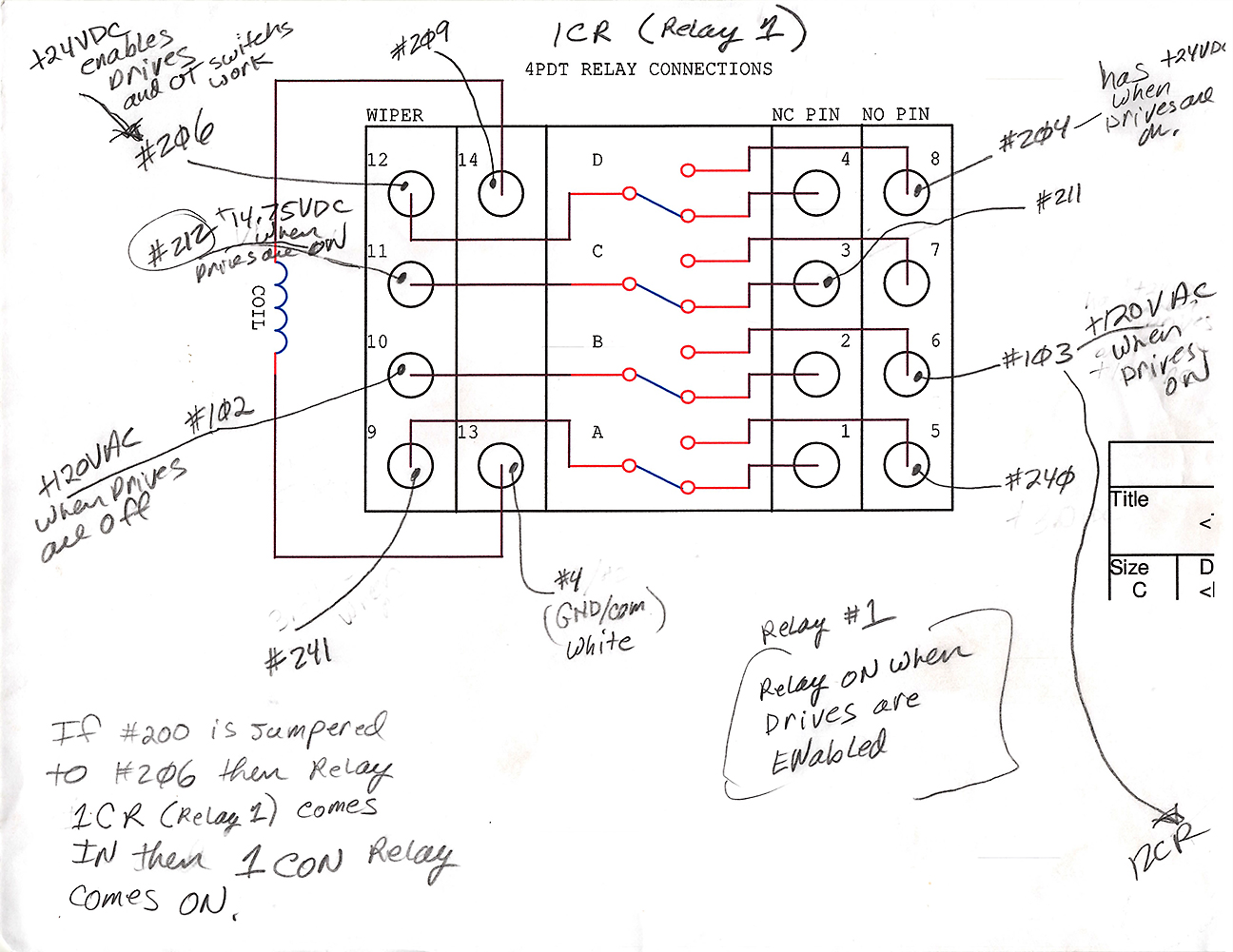

| 004 | Here the 1CRE Relay Wiring. Click on Image for Tree325 Schematic. |  | |

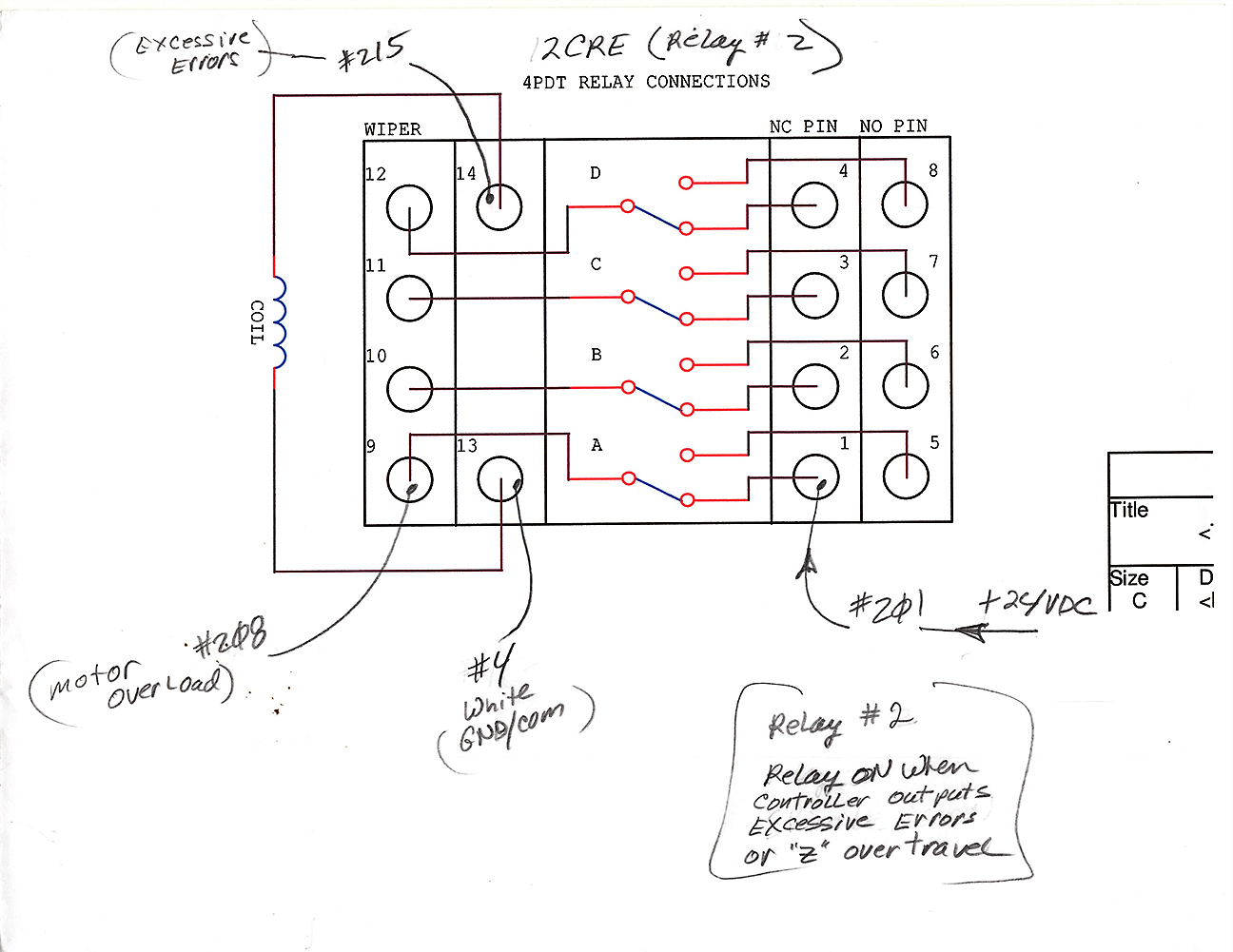

| 005 | Here the 2CRE Relay Wiring. Click on Image for Tree325 Schematic. |  | |

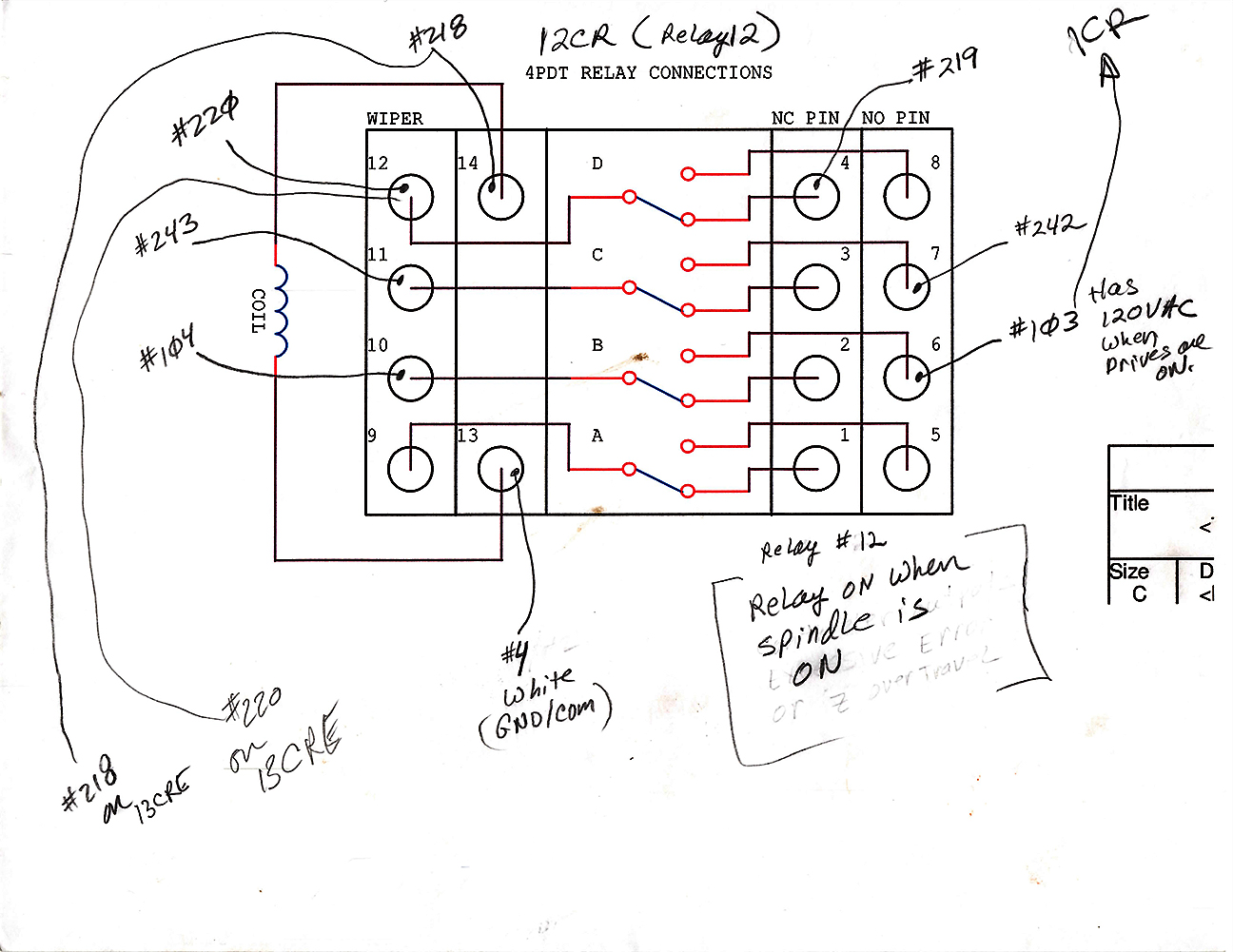

| 006 | Here the 12CRE Relay Wiring. Click on Image for Tree325 Schematic. |  | |

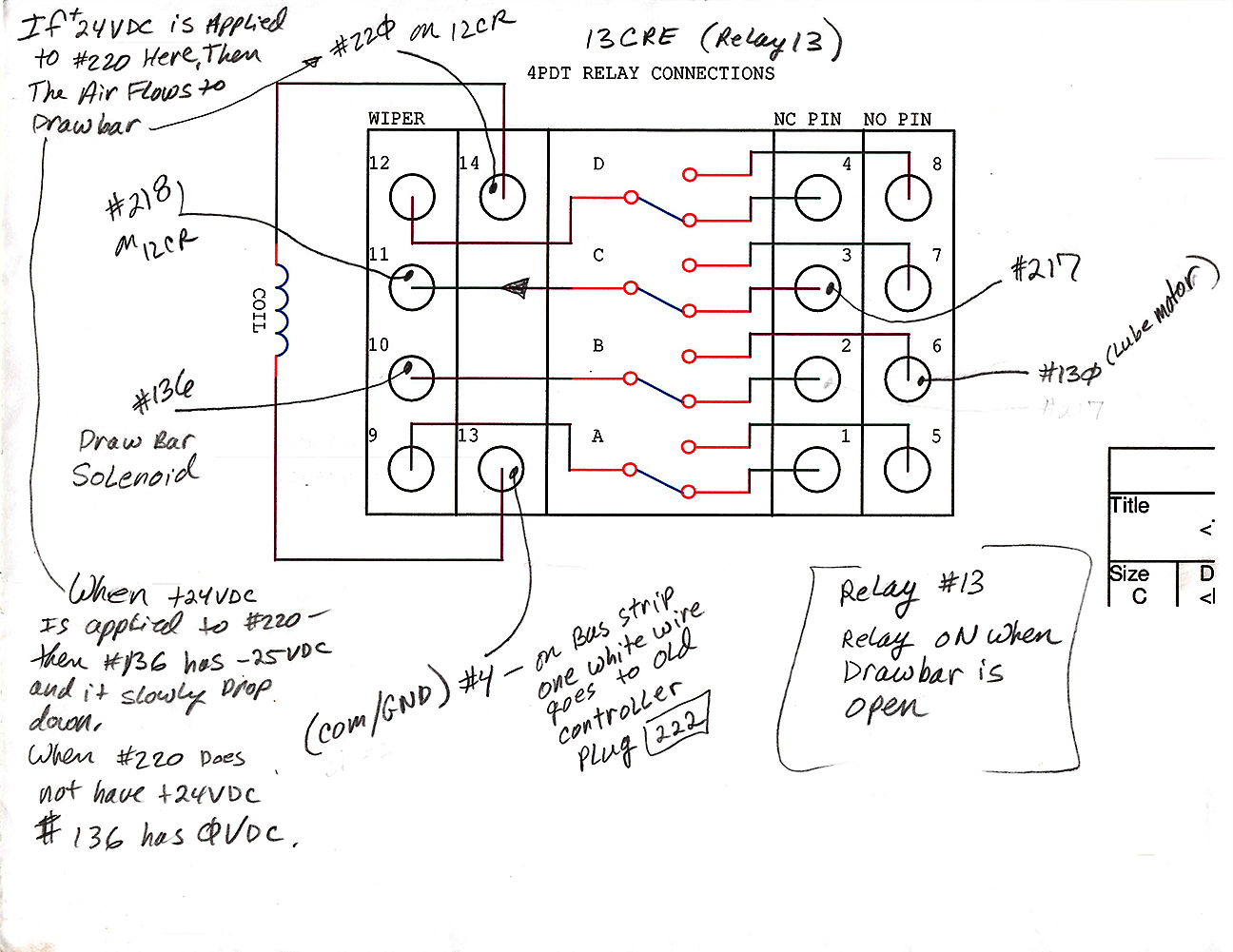

| 007 | Here the 13CRE Relay Wiring. Click on Image for Tree325 Schematic. |  | |
| 008 | Place Holder. |  | |
| 009 | Place Holder. | | |
| 010 | Place Holder. | |
