10


001

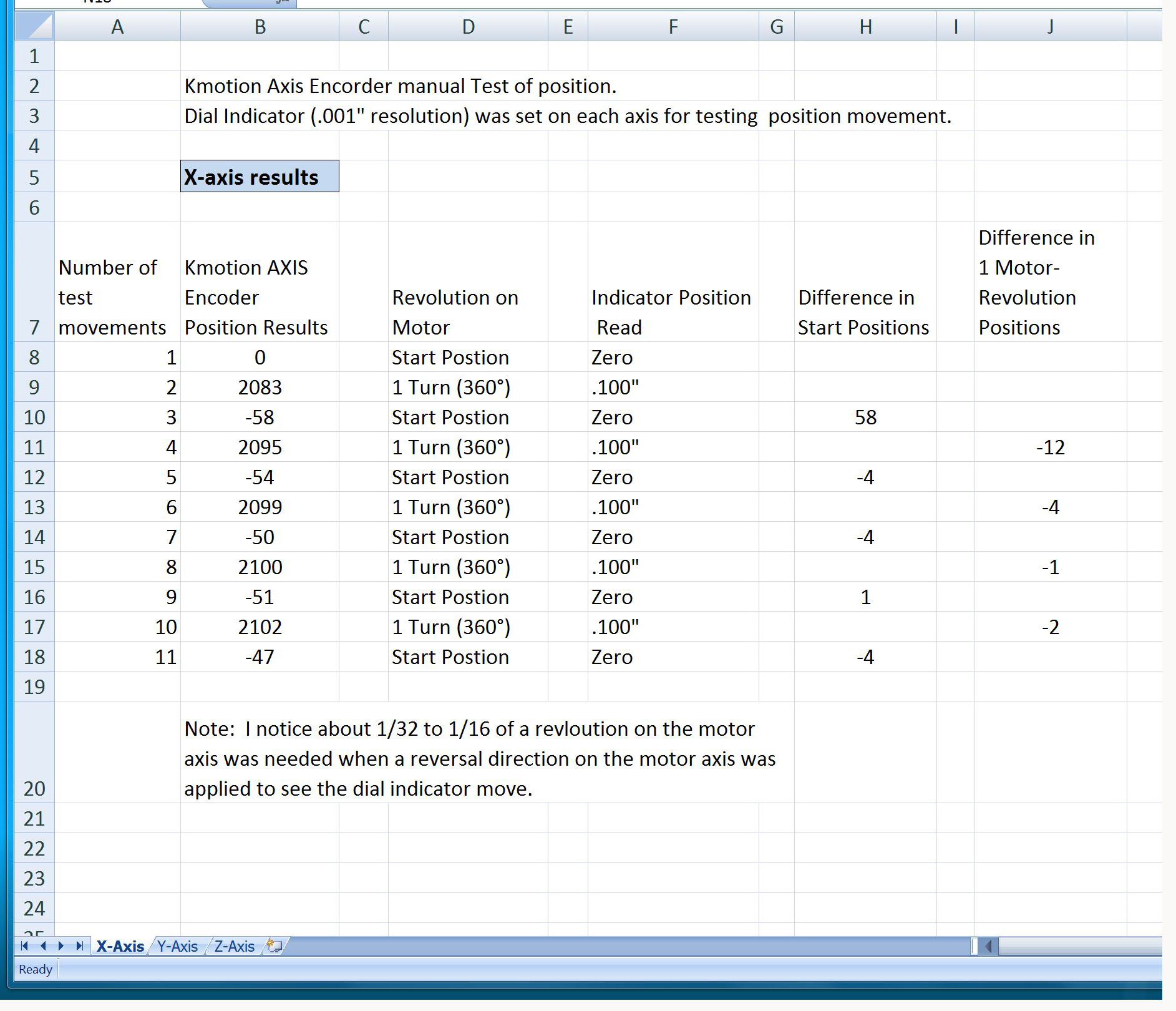

Kmotion - X-axis Encoder Position Manual Movement Test Results.

Kmotion-Config Screen and Axis Screen Below.

X-Axis Encoder-Kmotion Manual Movement Test
002

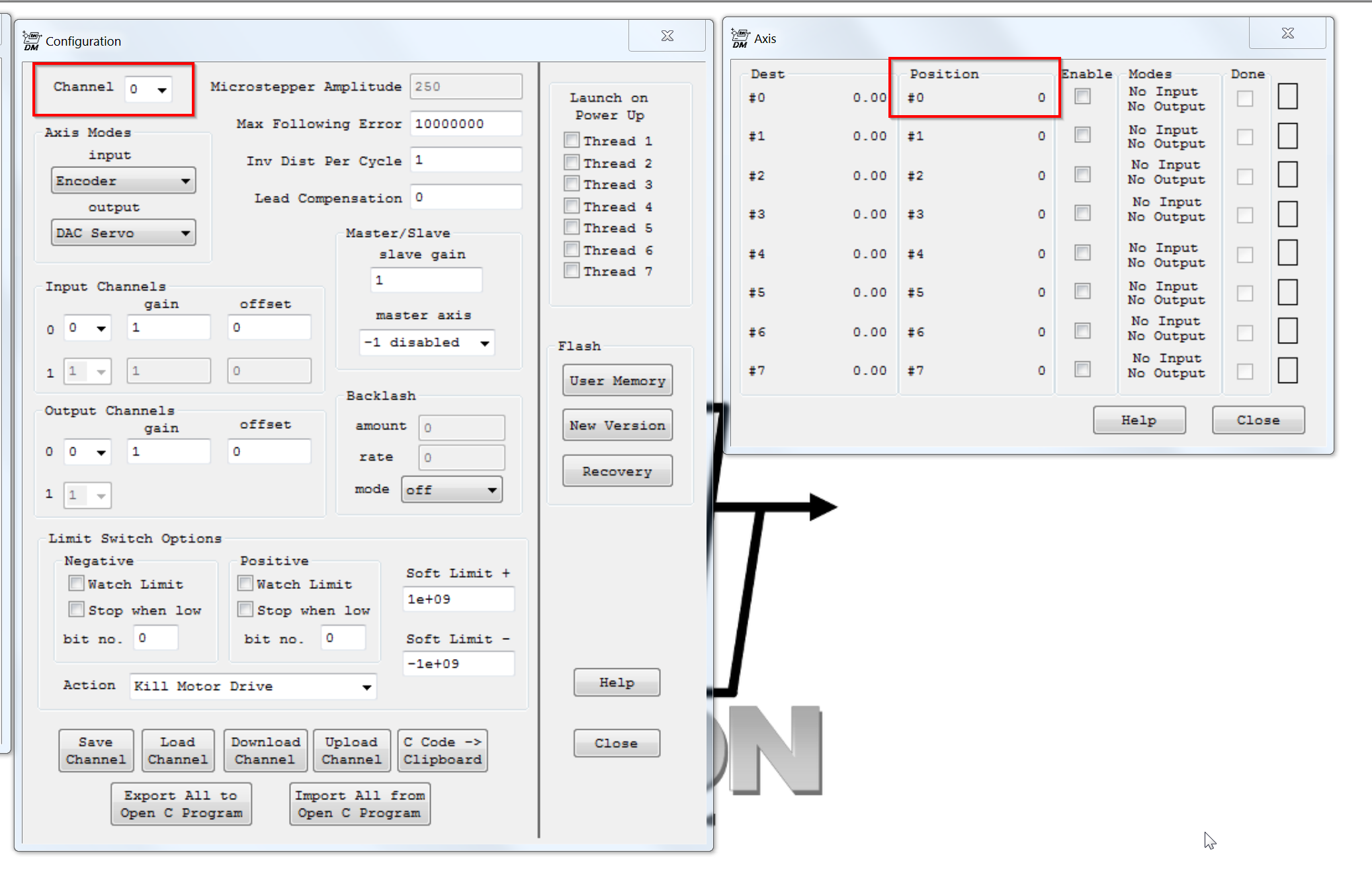

Kmotion - X-axis Config (with "KanalogInitialPID.mot")
Screen and Axis Screen

Kmotion X-Axis Config & Axis Screens for Results above.
003

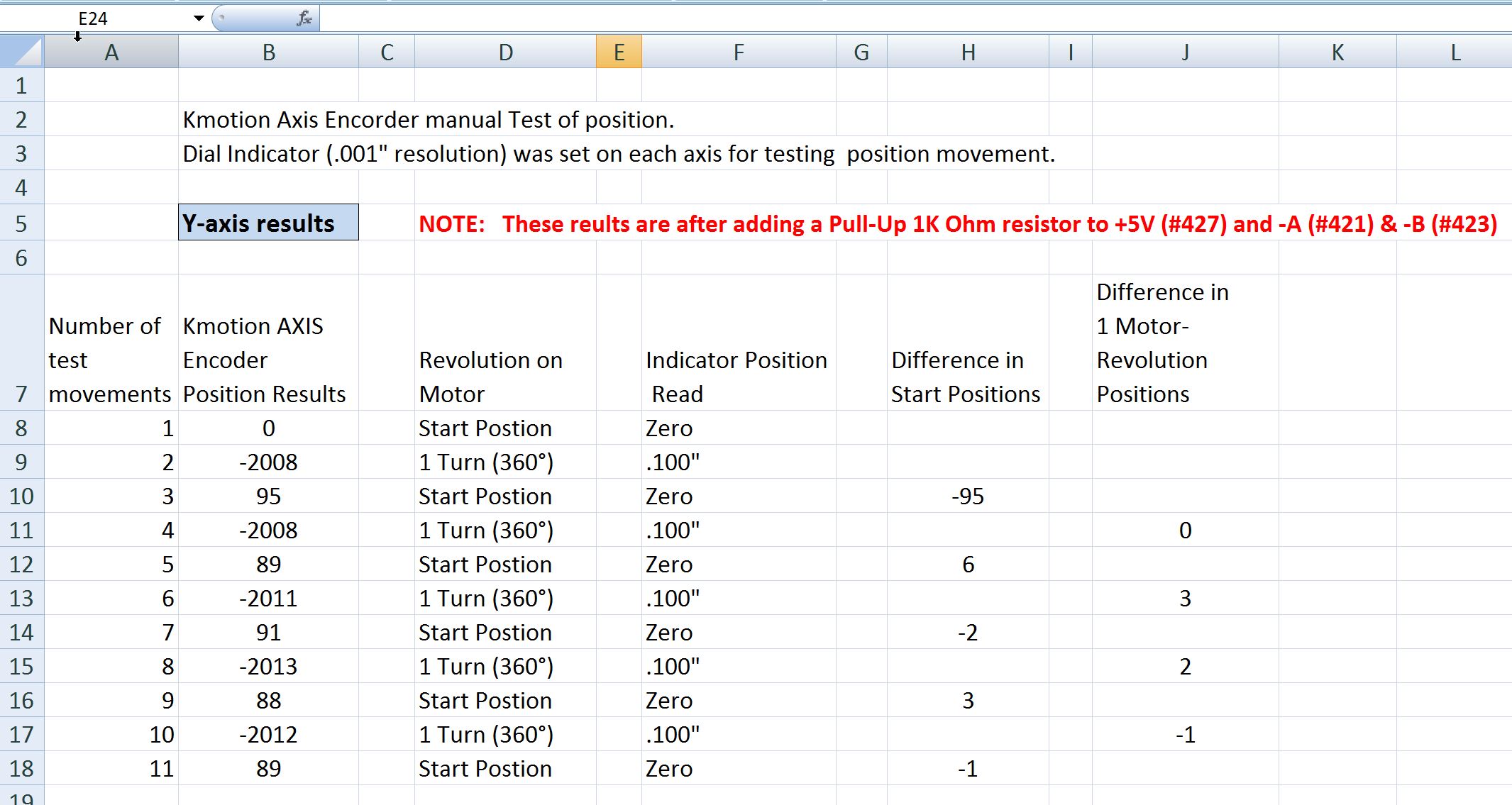

Kmotion - Y-axis Encoder Position Manual Movement Test Results.

Kmotion-Config Screen and Axis Screen Below.


Y-Axis Encoder-Kmotion Manual Movement Test
004
Kmotion - Y-axis Config (with "KanalogInitialPID.mot")
Screen and Axis Screen		Kmotion Y-Axis Config & Axis Screens for Results above.
005

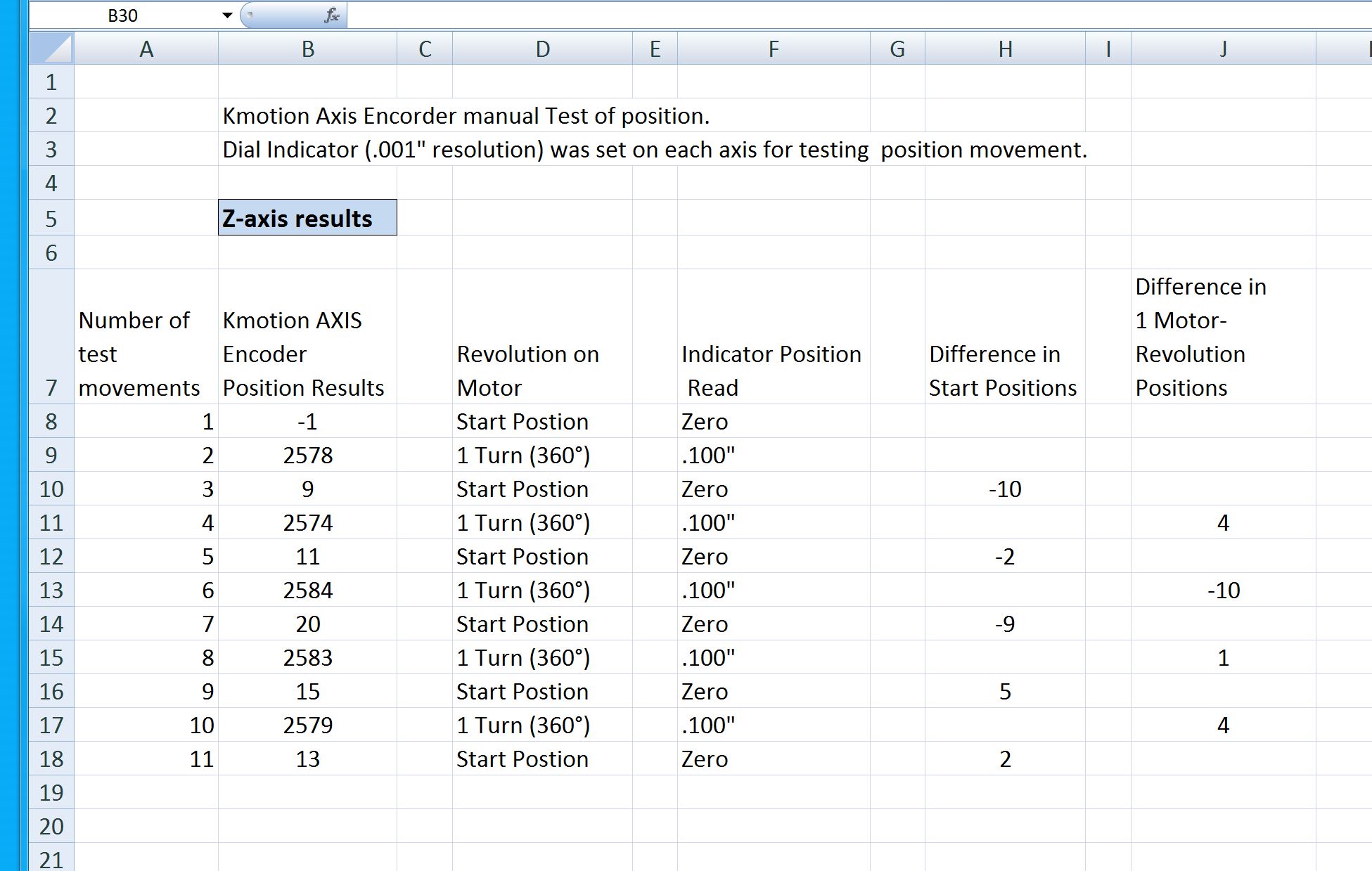

Kmotion - Z-axis Encoder Position Manual Movement Test Results.

Kmotion-Config Screen and Axis Screen Below.

Z-Axis Encoder-Kmotion Manual Movement Test

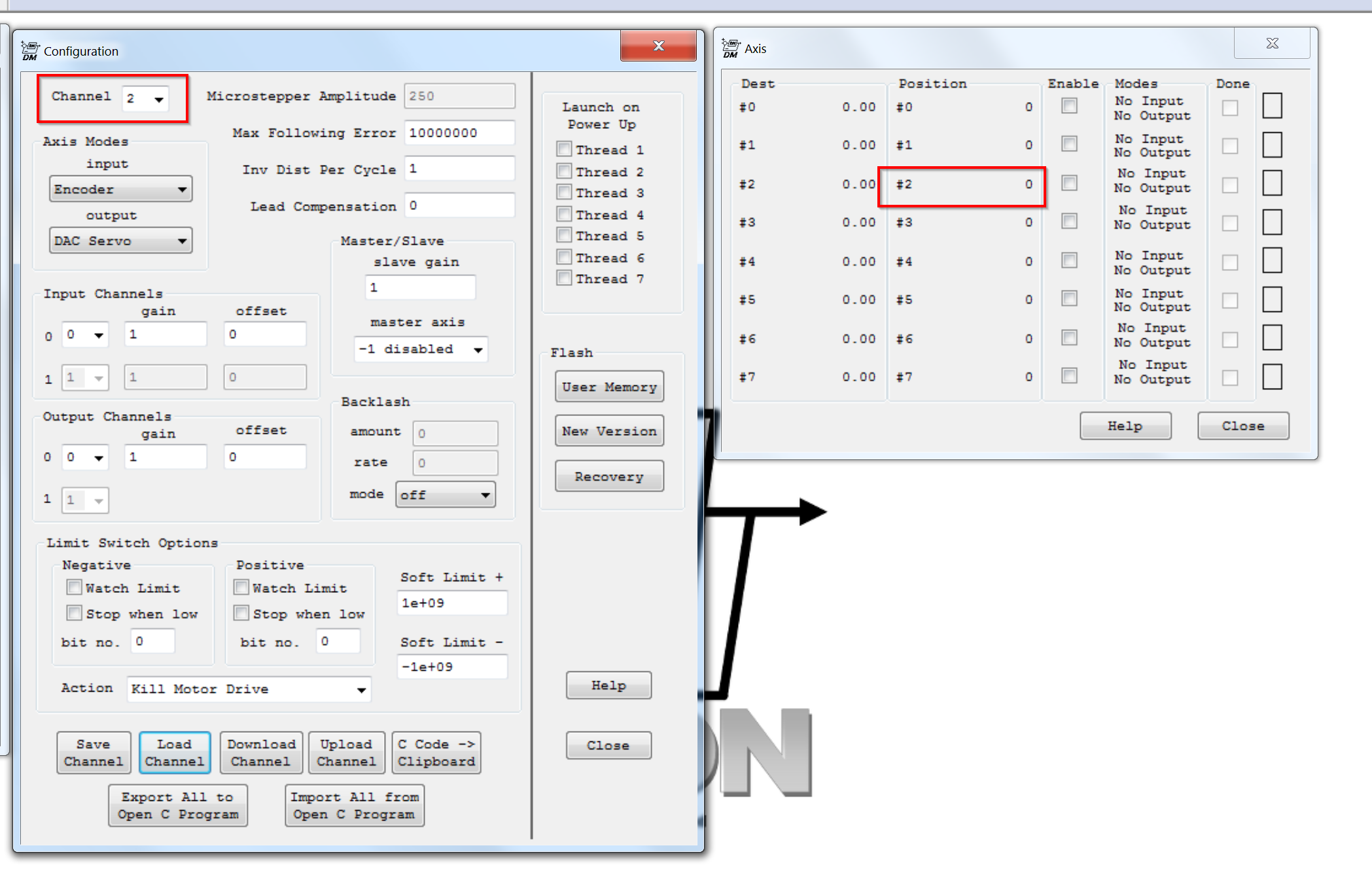

006Kmotion - Z-axis Config (with "KanalogInitialPID.mot")
Screen and Axis Screen		Kmotion Z-Axis Config & Axis Screens for Results above.
