J325_Pictures

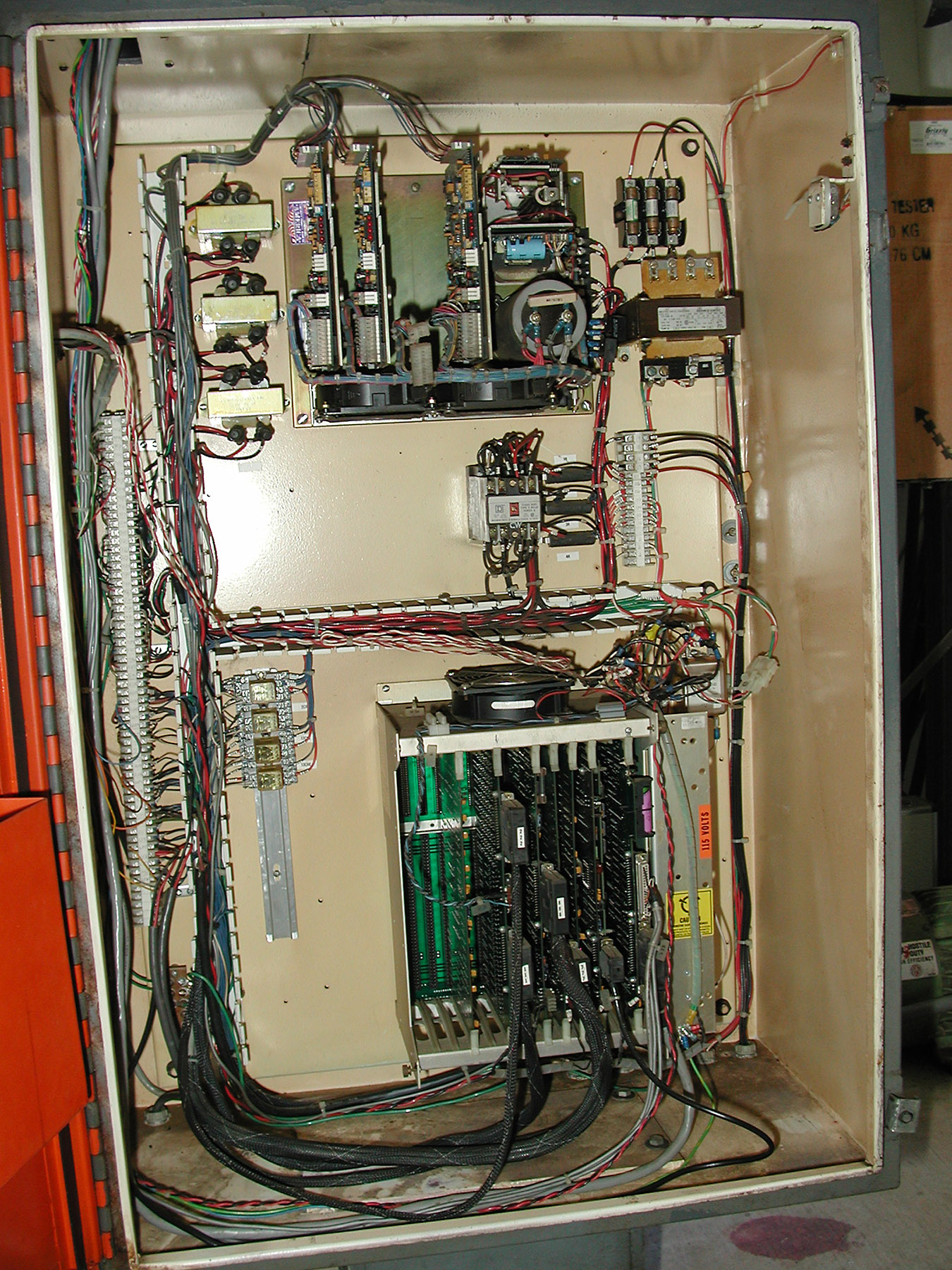

This is the Right-Hand side Electrical Cabinet of the orginal Tree 325 before retrofitting with the Dynomotion boards. The following picture below will be show in the Left-to-Right fashion and moving from the top-to-the-bottom.

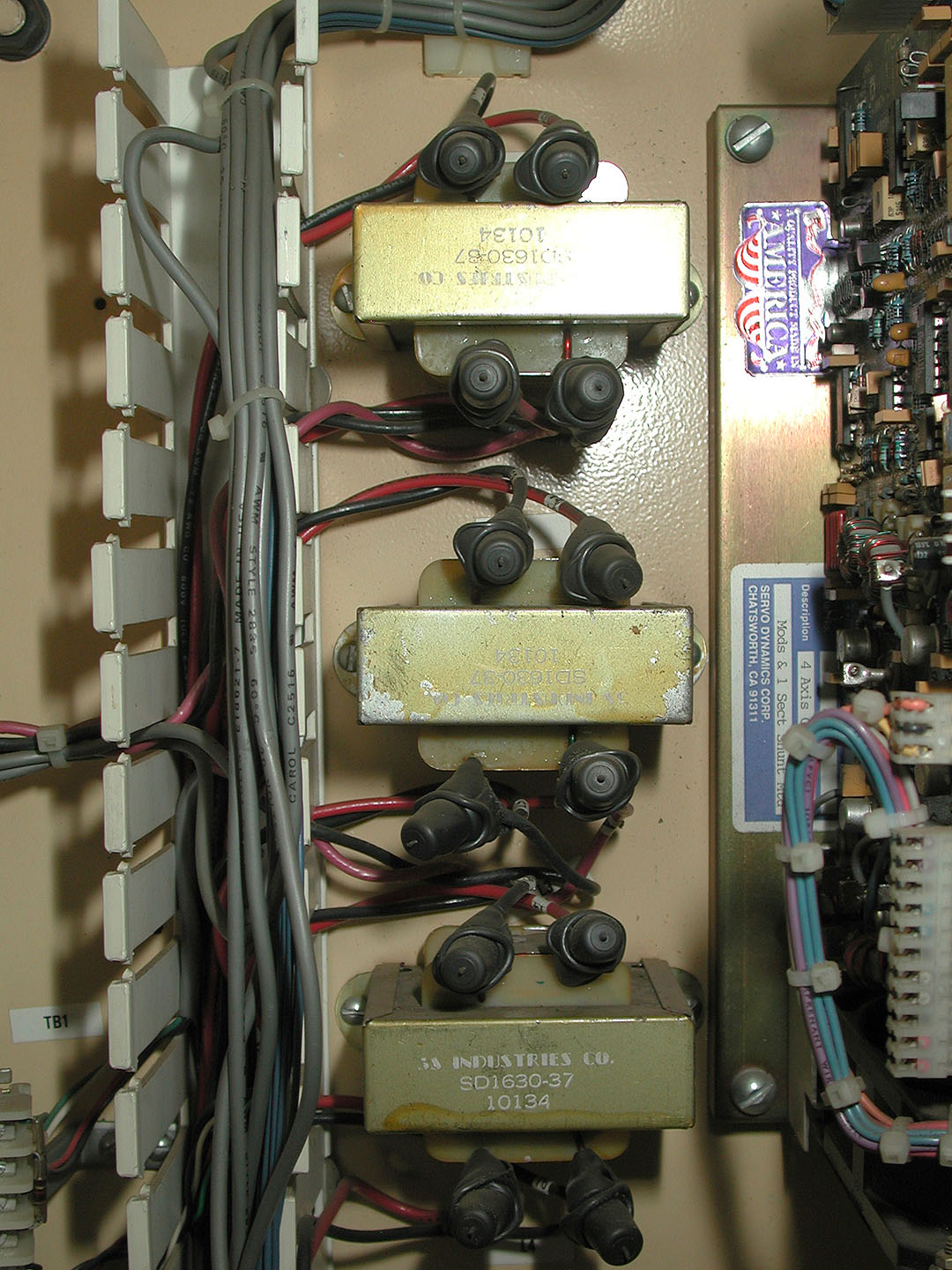

001	This is the top most Left-Hand side of the cabinet above. I beleive these are the Inductors the servos. If you click on the picture you can view a larger image.

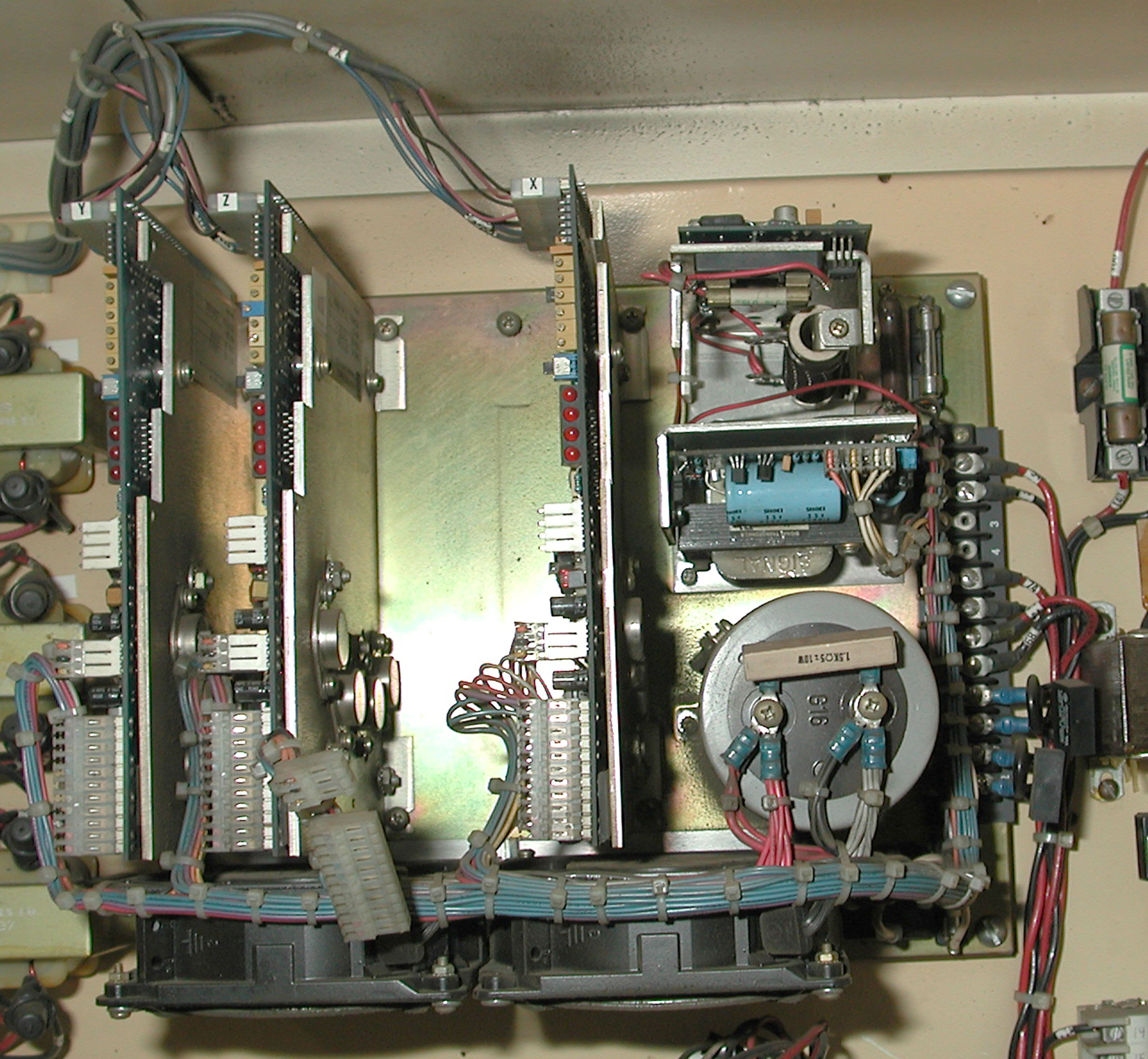

002	This is the Top Most Center of the cabinet above. I beleive these are the X,Y, & Z drives. If you click on the picture you can view a larger image.

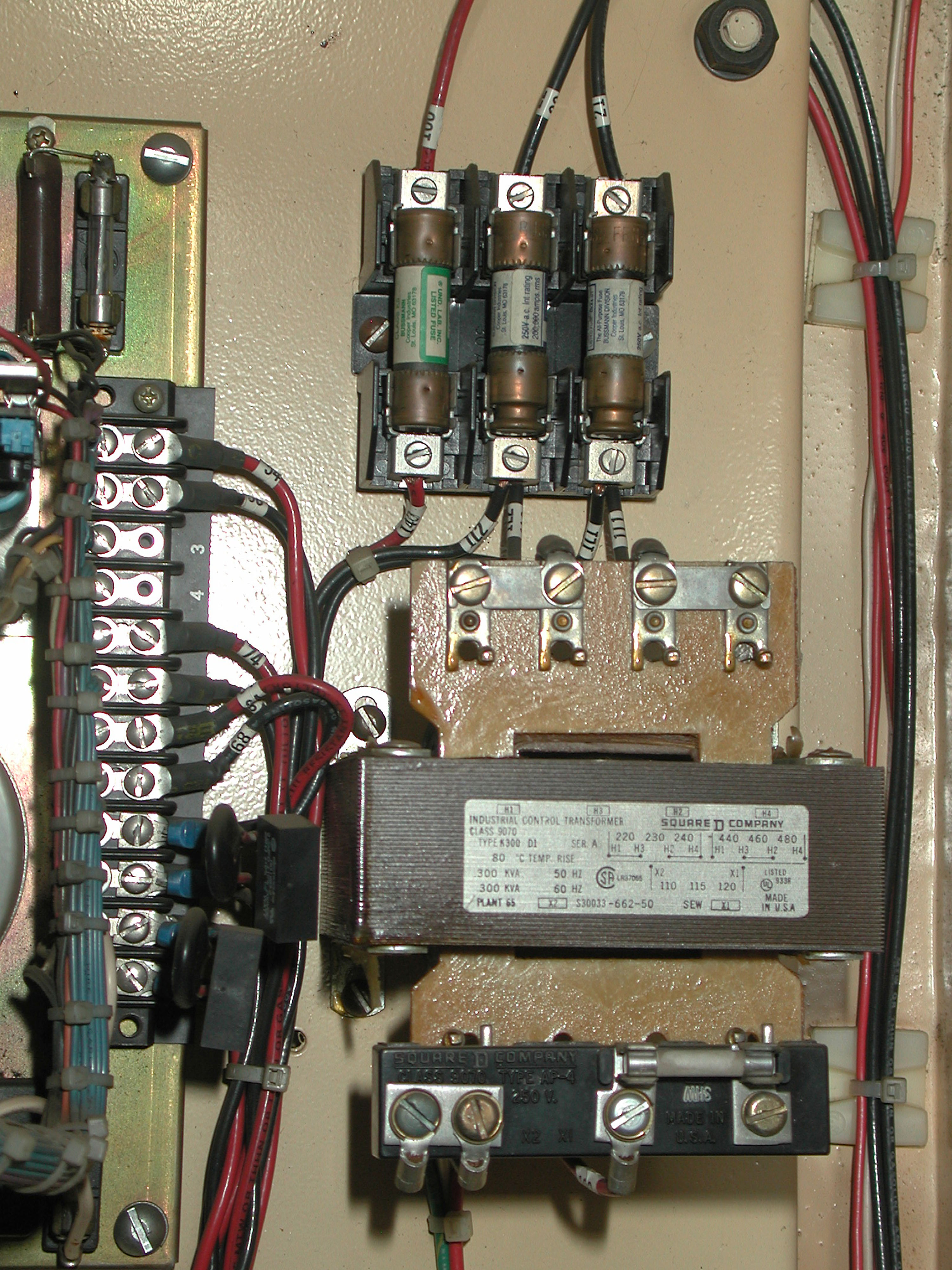

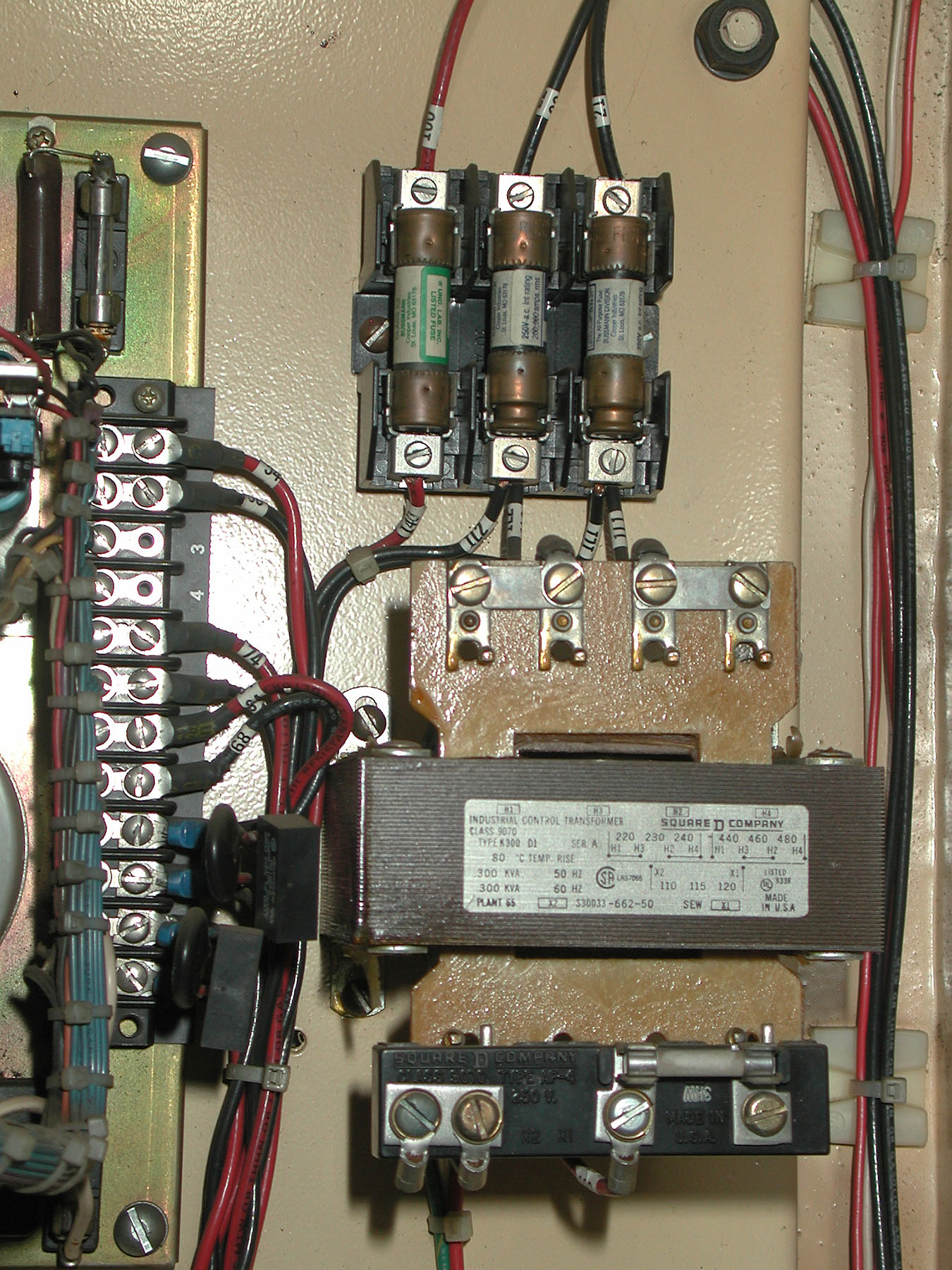

003	This is the Top Most Right-Hand side of the cabinet above. I beleive is the 3-phase leads coming in to the transformer to reduce the power to 110V on one line of the 3-phase coming in. If you click on the picture you can view a larger image.

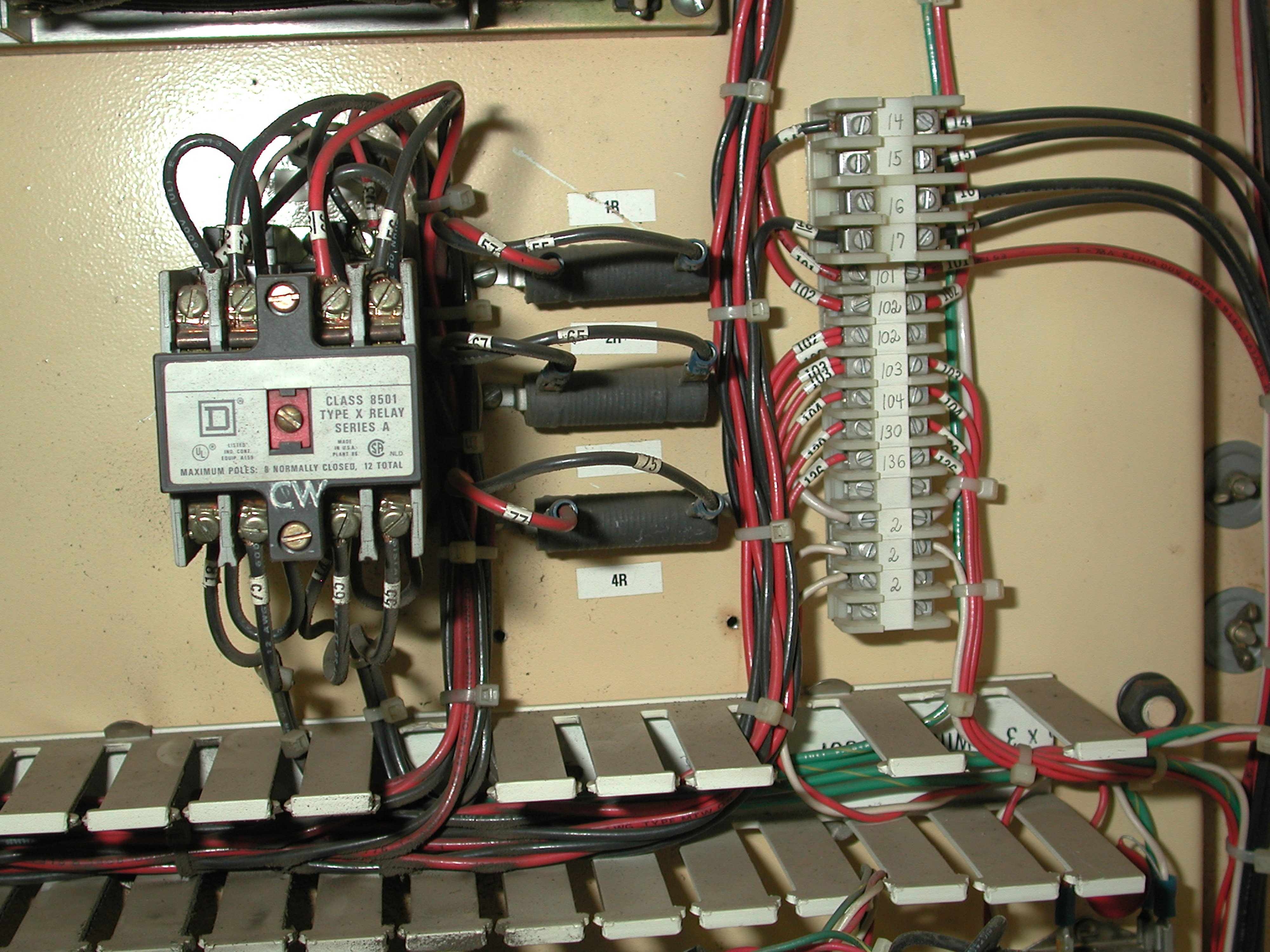

004	This is the Mid-way down in the Right-Hand side of the cabinet above. I am not sure what this is and what is used for. Certinly open for somebody to tell me. If you click on the picture you can view a larger image.

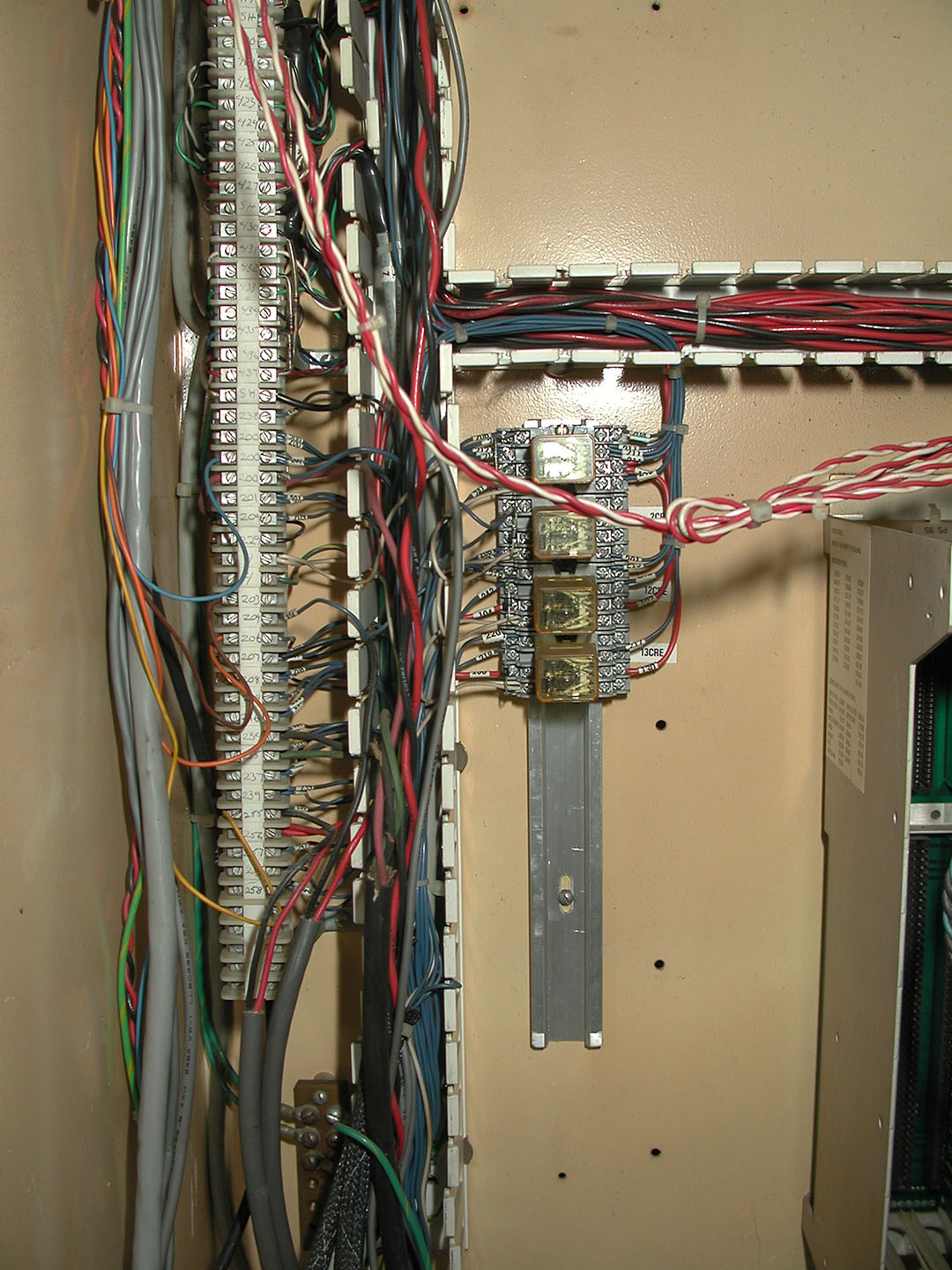

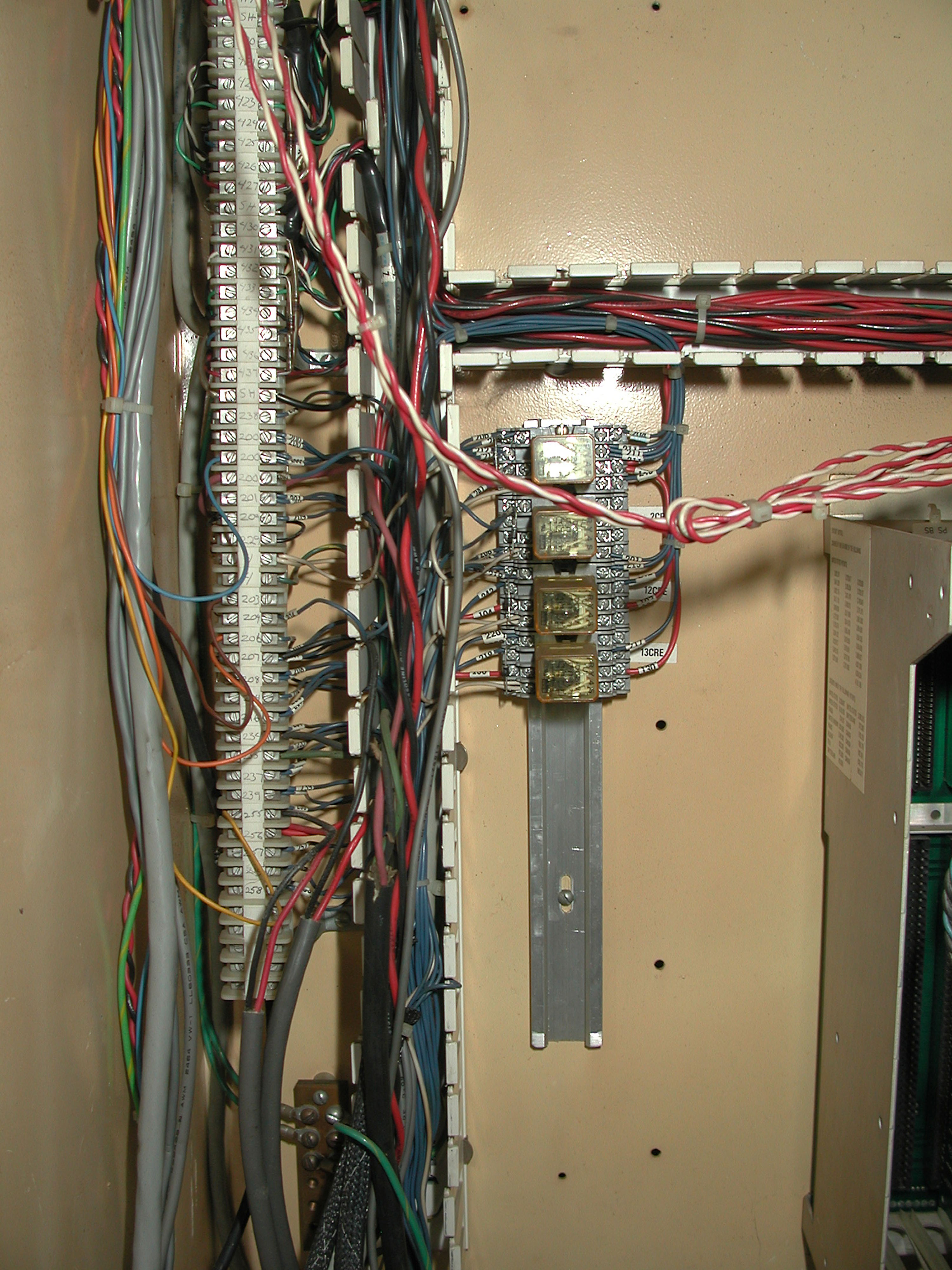

005	This is the Mid-way down on the left-Hand side in the Right-Hand side of the cabinet above. This is the terminal bus and some relays ... I am assuming. If you click on the picture you can view a larger image.

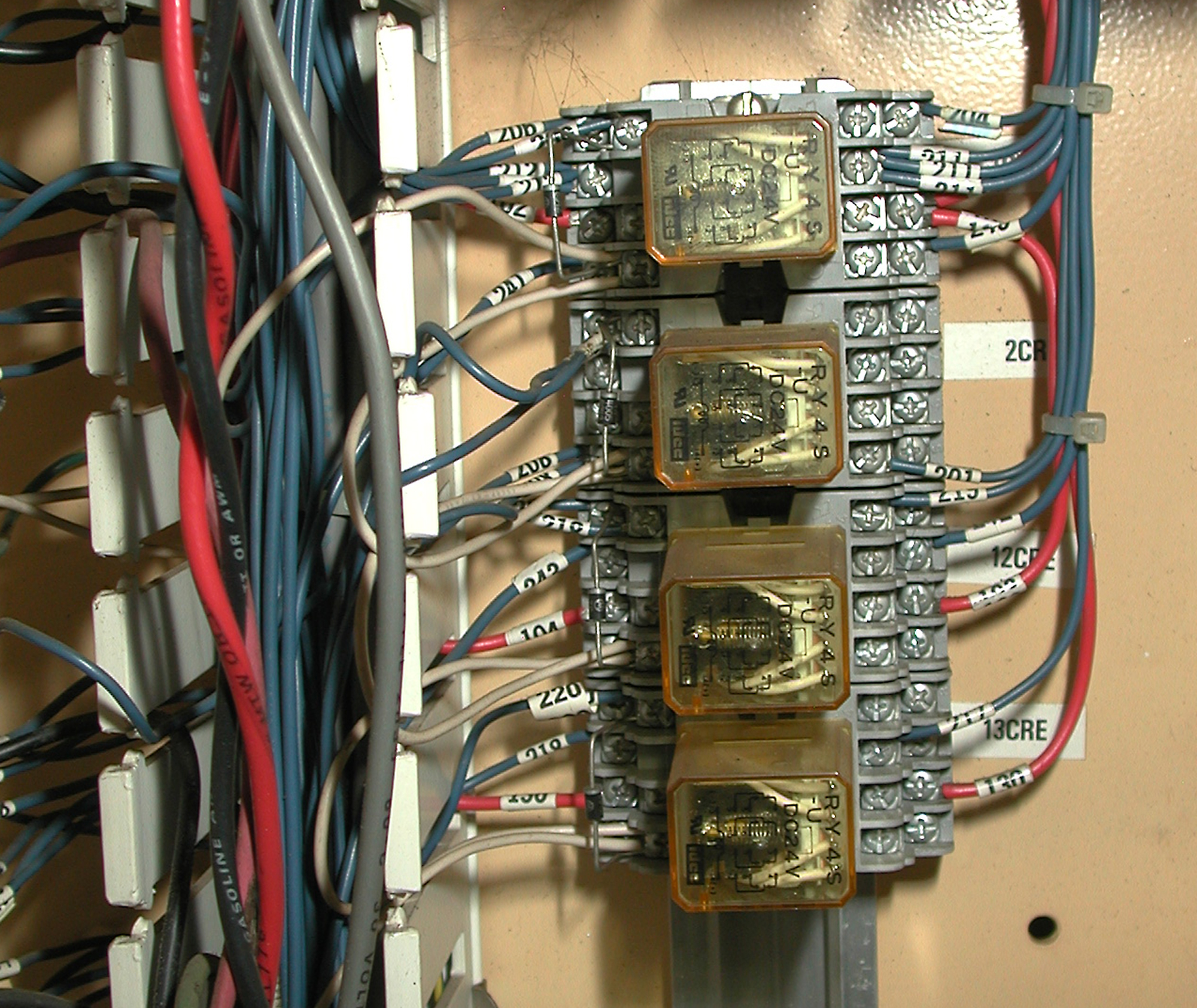

006	This is the Mid-way down on the left-Hand side in the Right-Hand side of the cabinet above. This is a close-up of the 24V relays... I am not sure what they are used for. If you click on the picture you can view a larger image.

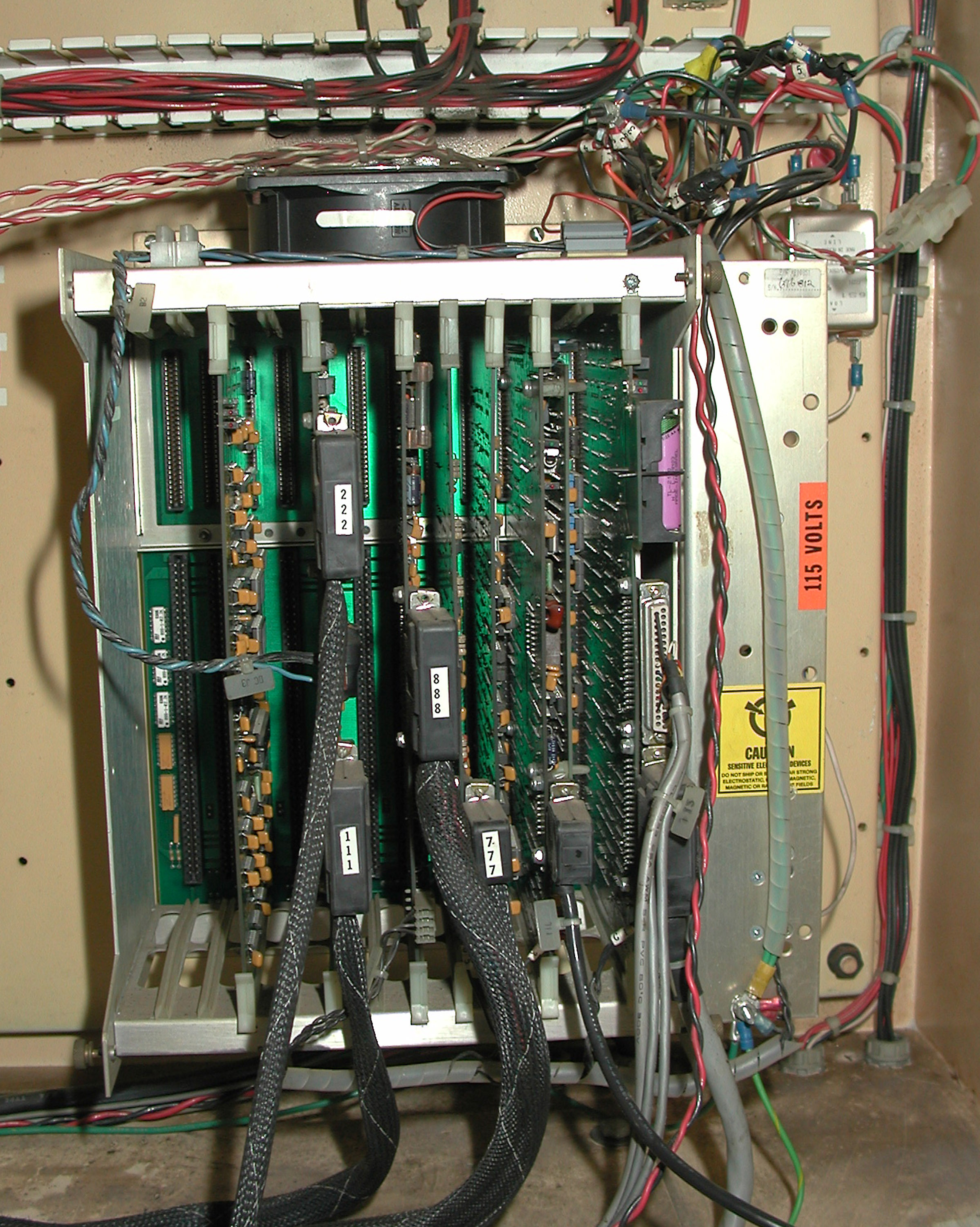

007	This is the Bottom of the side in the Right-Hand side of the cabinet above. This is the controller. If you click on the picture you can view a larger image.

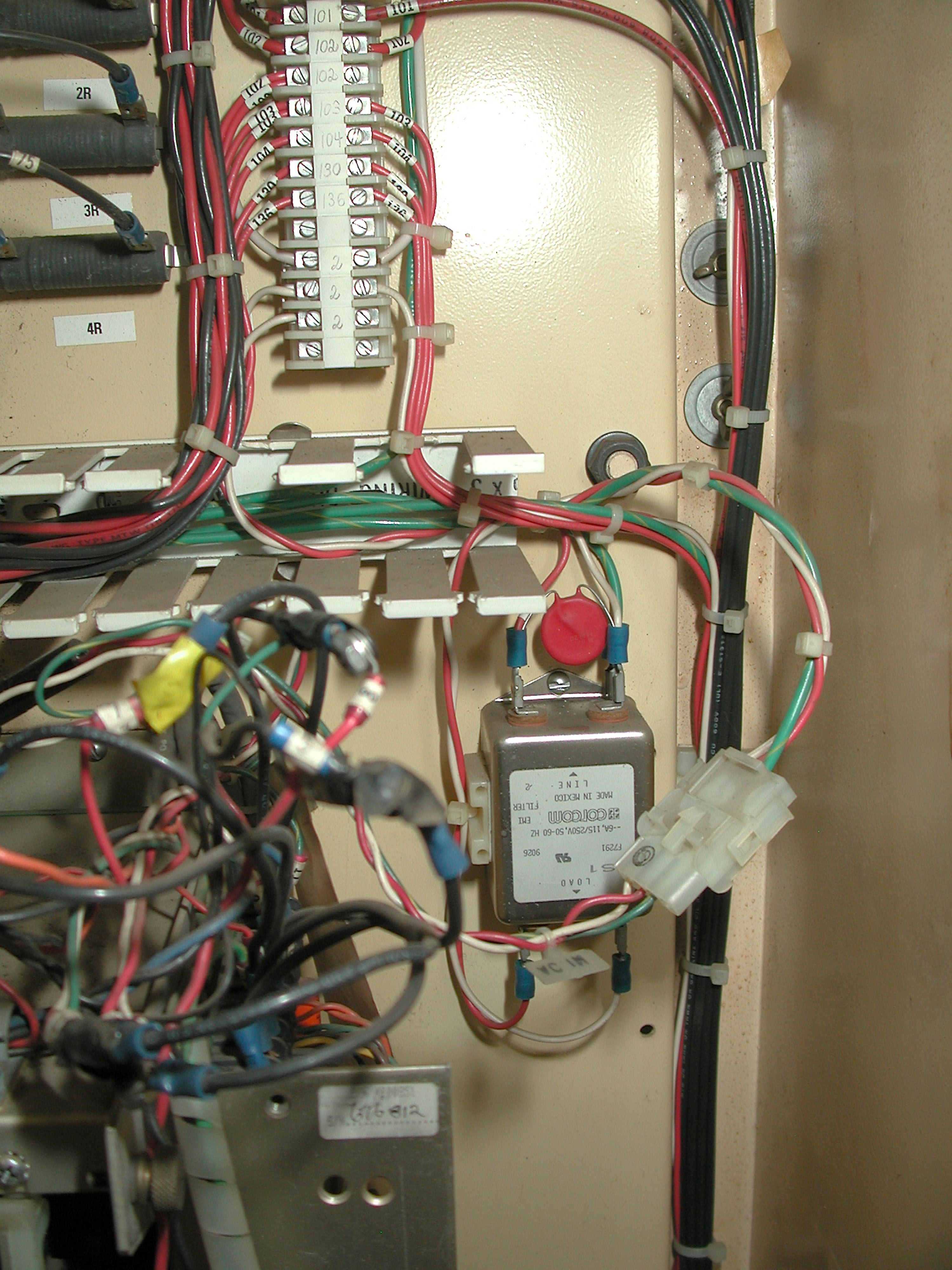

008	This is the off the right side of the controller of the Right-Hand side of the cabinet above. I am not sure what this is or what it does. If you click on the picture you can view a larger image.
