| 001 |

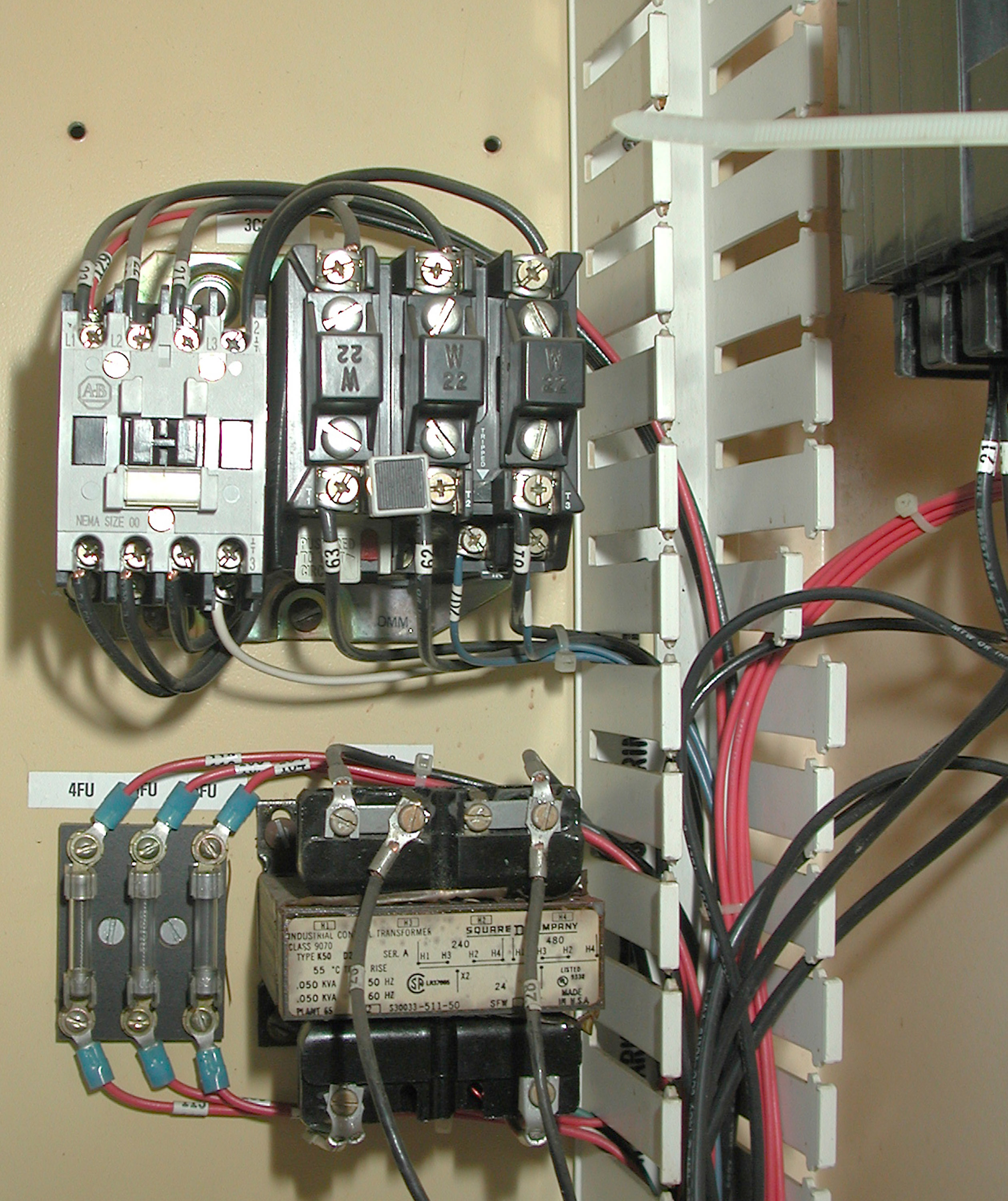

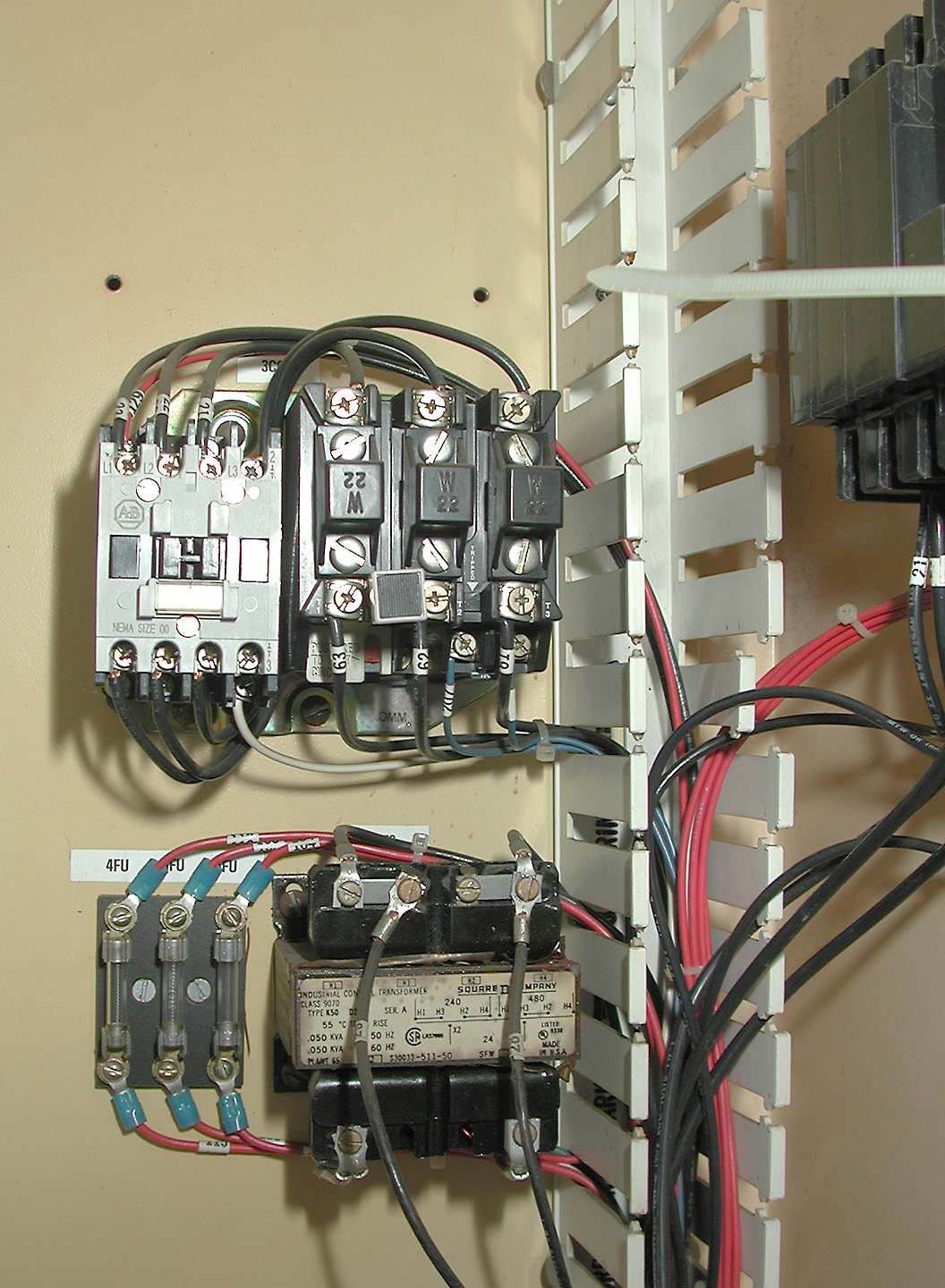

This
is the Reft-Hand side of the back cabinet above. If you click on
the picture you can view a larger image.
| |  |

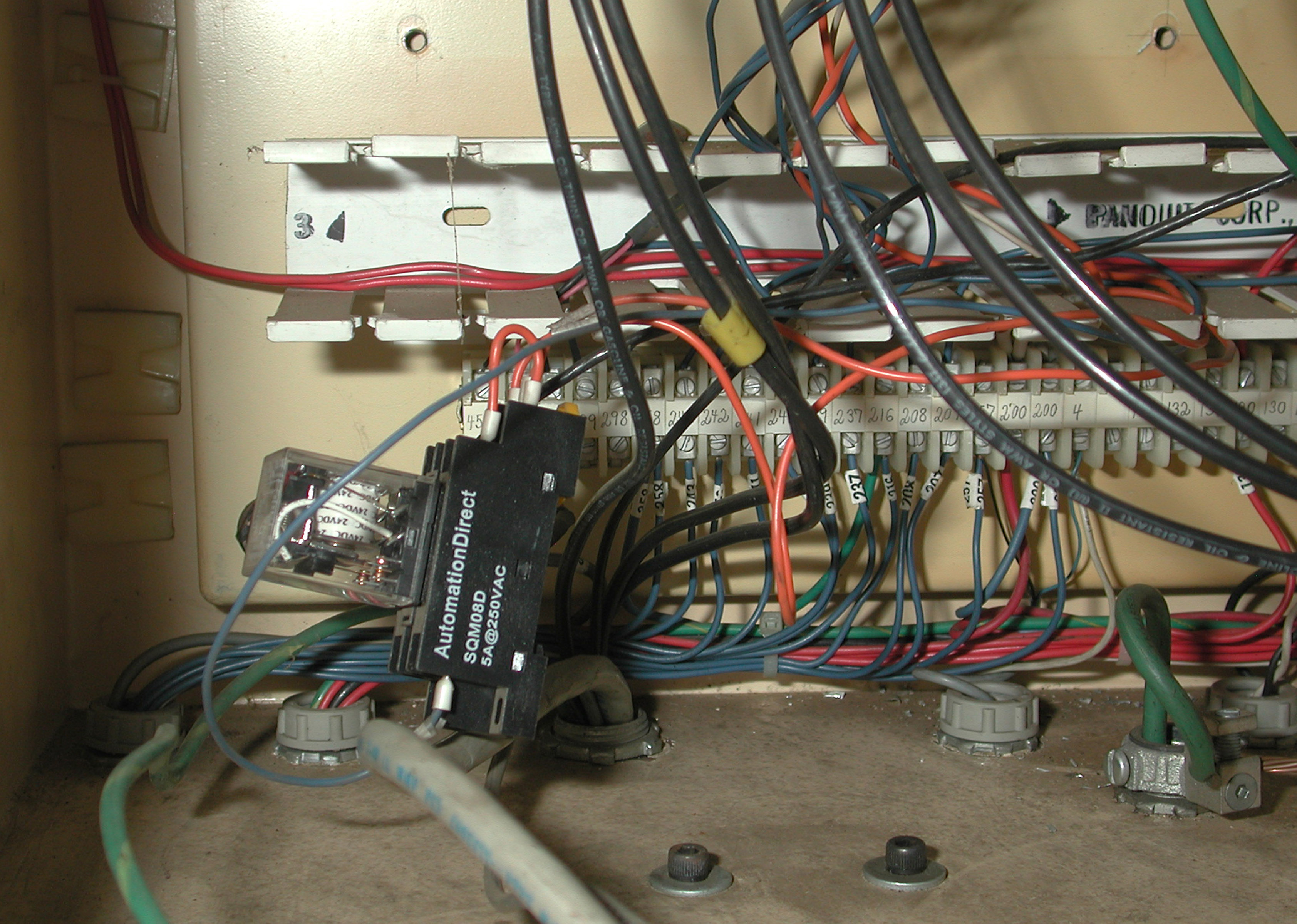

| 002 | This is the Bottom of the Back Cabinet. If you click on the picture you can view a larger image. | |  |

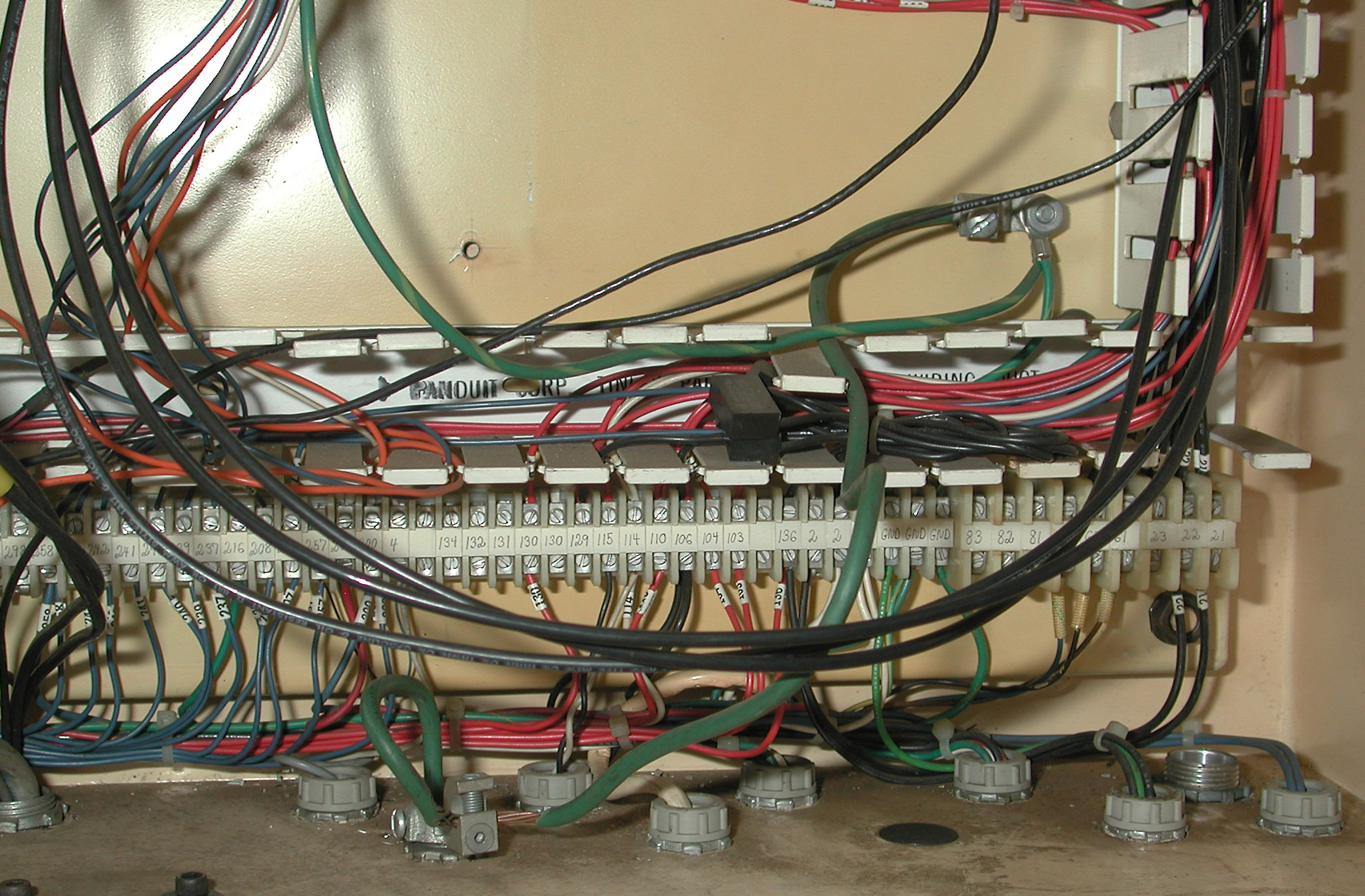

| 003 | This
is the Wires on the Bottom of Back Cabinet. If you click on the picture you can view a larger image. | |  |

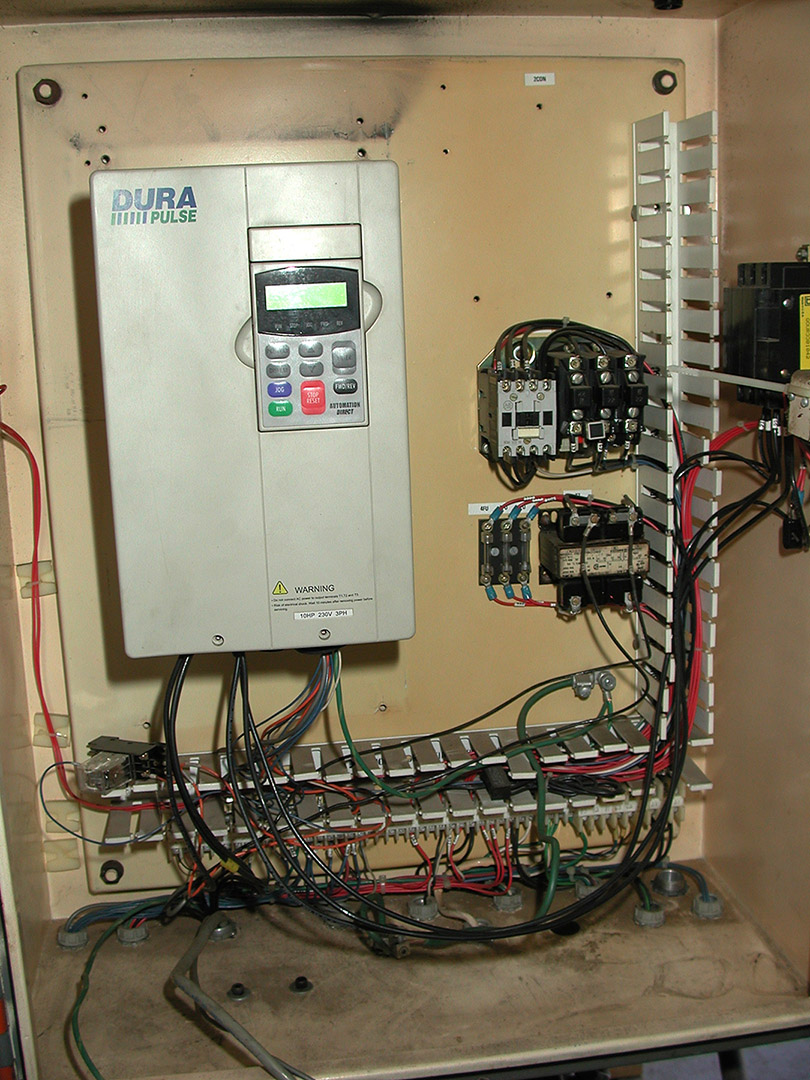

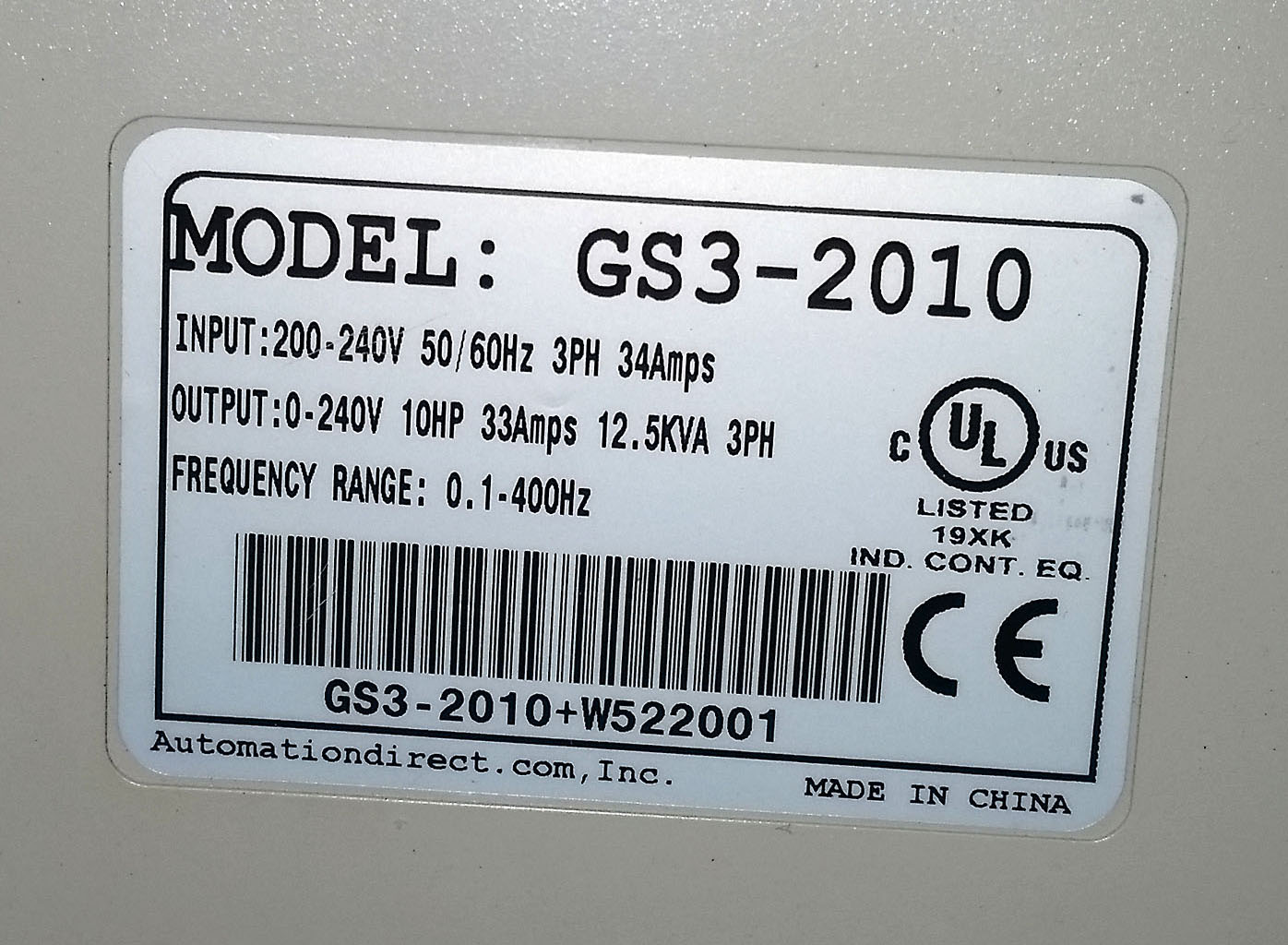

004
| This is the Label on the VFD in the back Cabinet. If you click on the image you will get the link to the Specs/PDF. | |  |

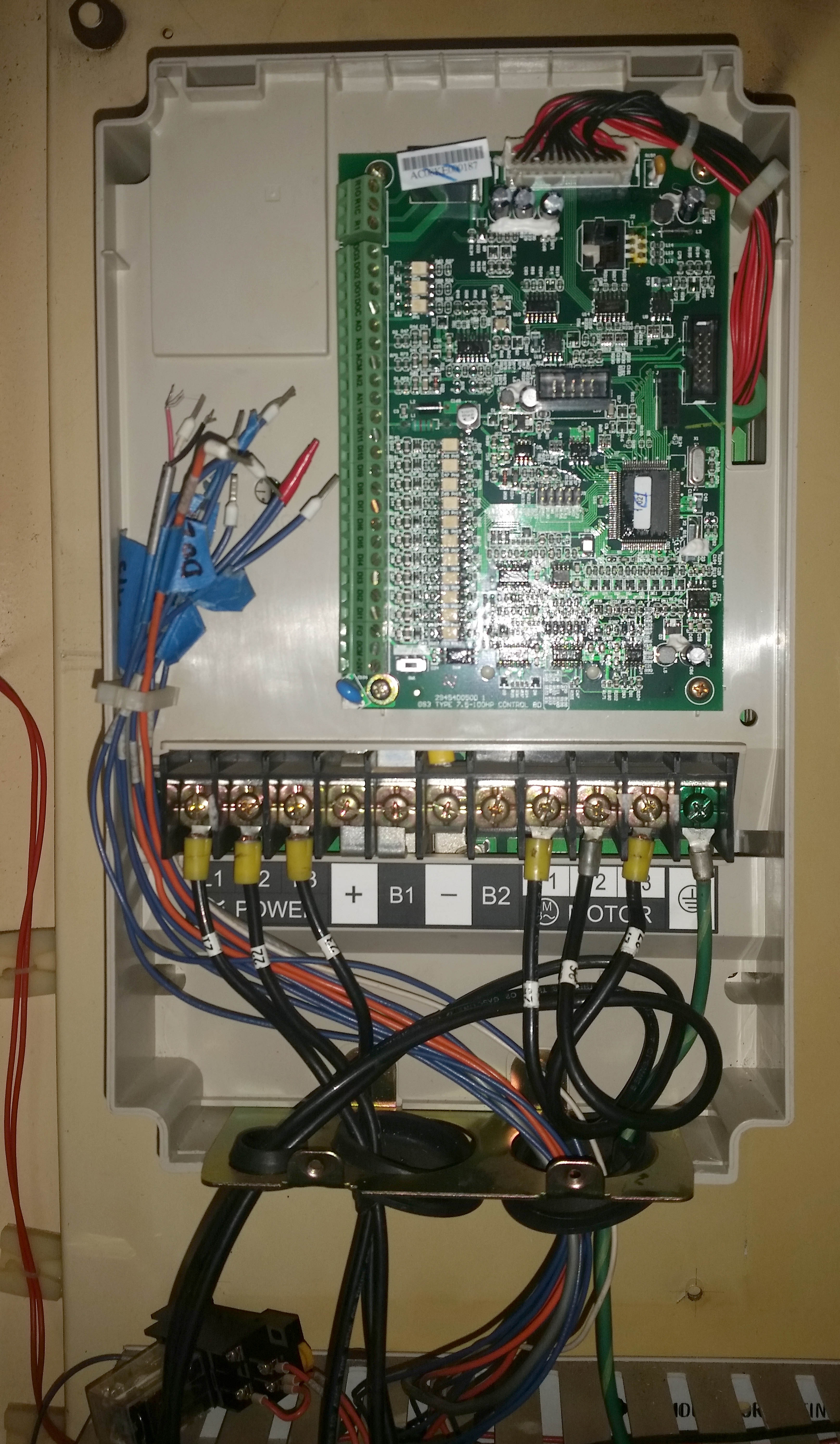

| 005 | This
is the Inside of the VFD. I am not sure if these wires are to
be connect to the bus on the right for the spindle to run correctly
from G-Code. If you click on the picture you can view a larger image. | |  |

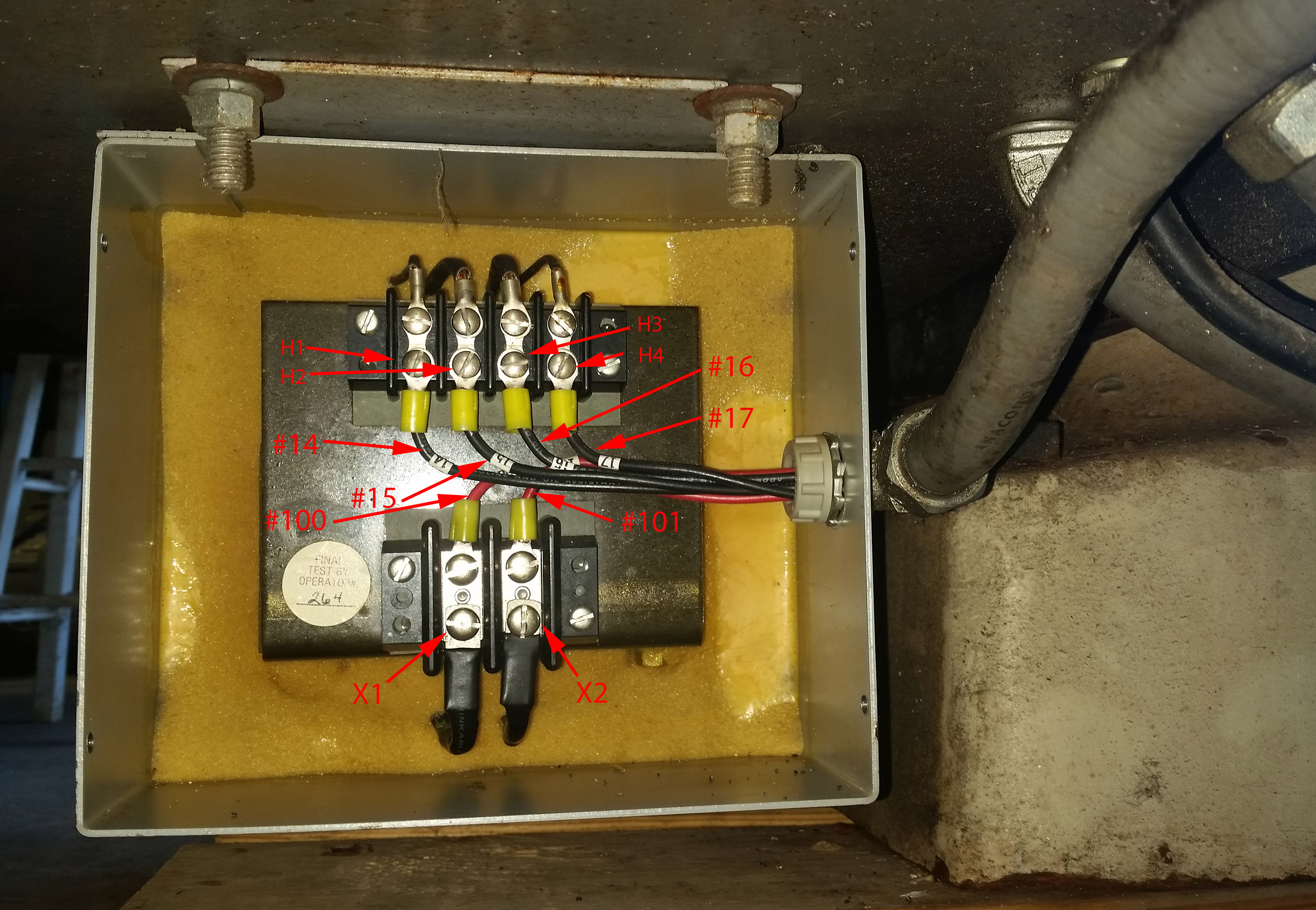

| 006 | This
is the the Inside on the Transformer case under the Right-Hand side Cabinet. | |  |

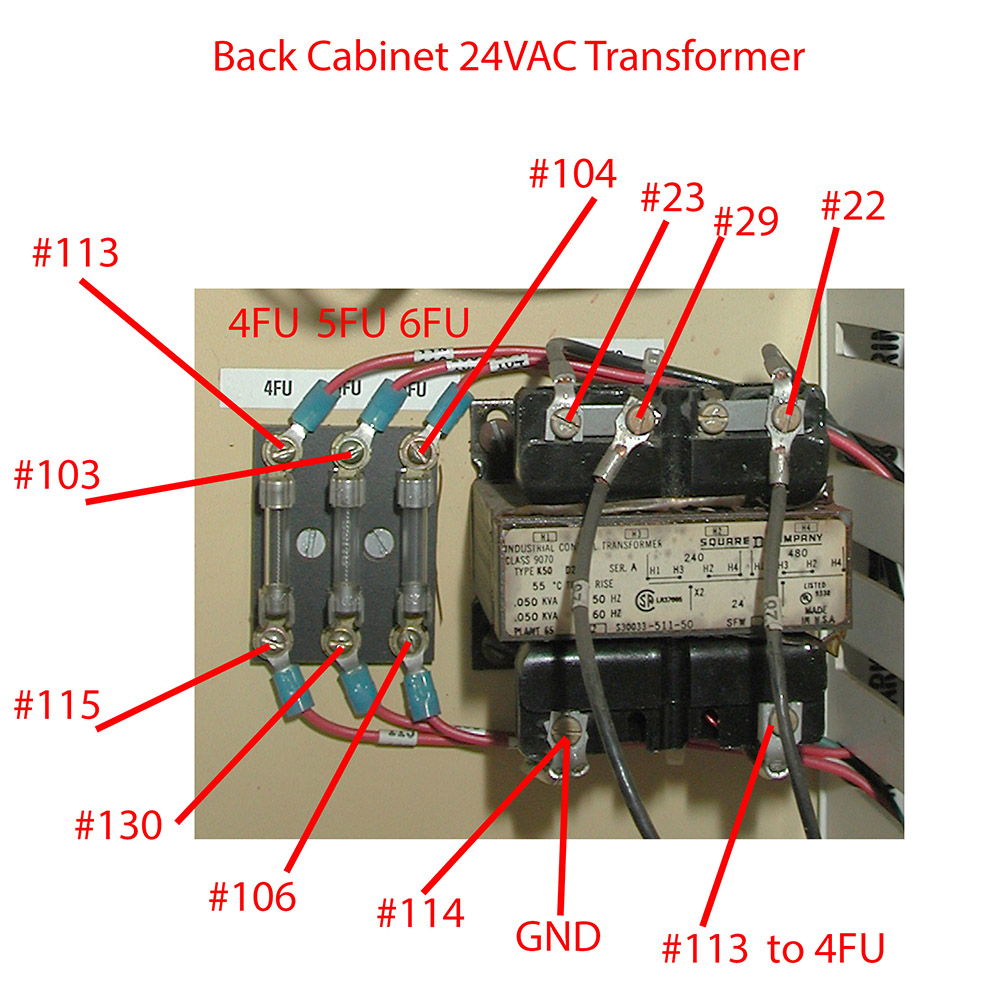

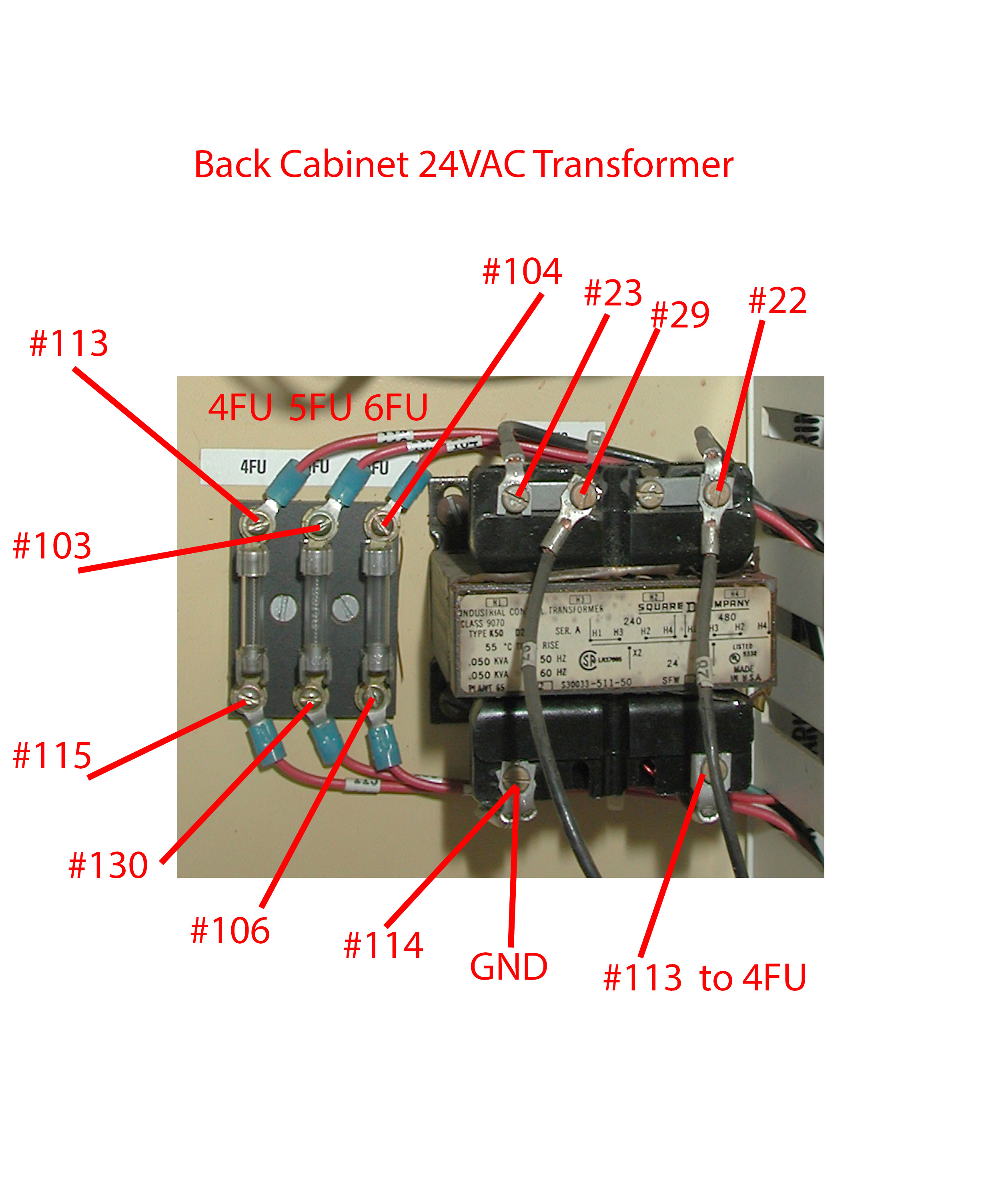

| 007 | 24VAC Transformer - wires connected | |  |
