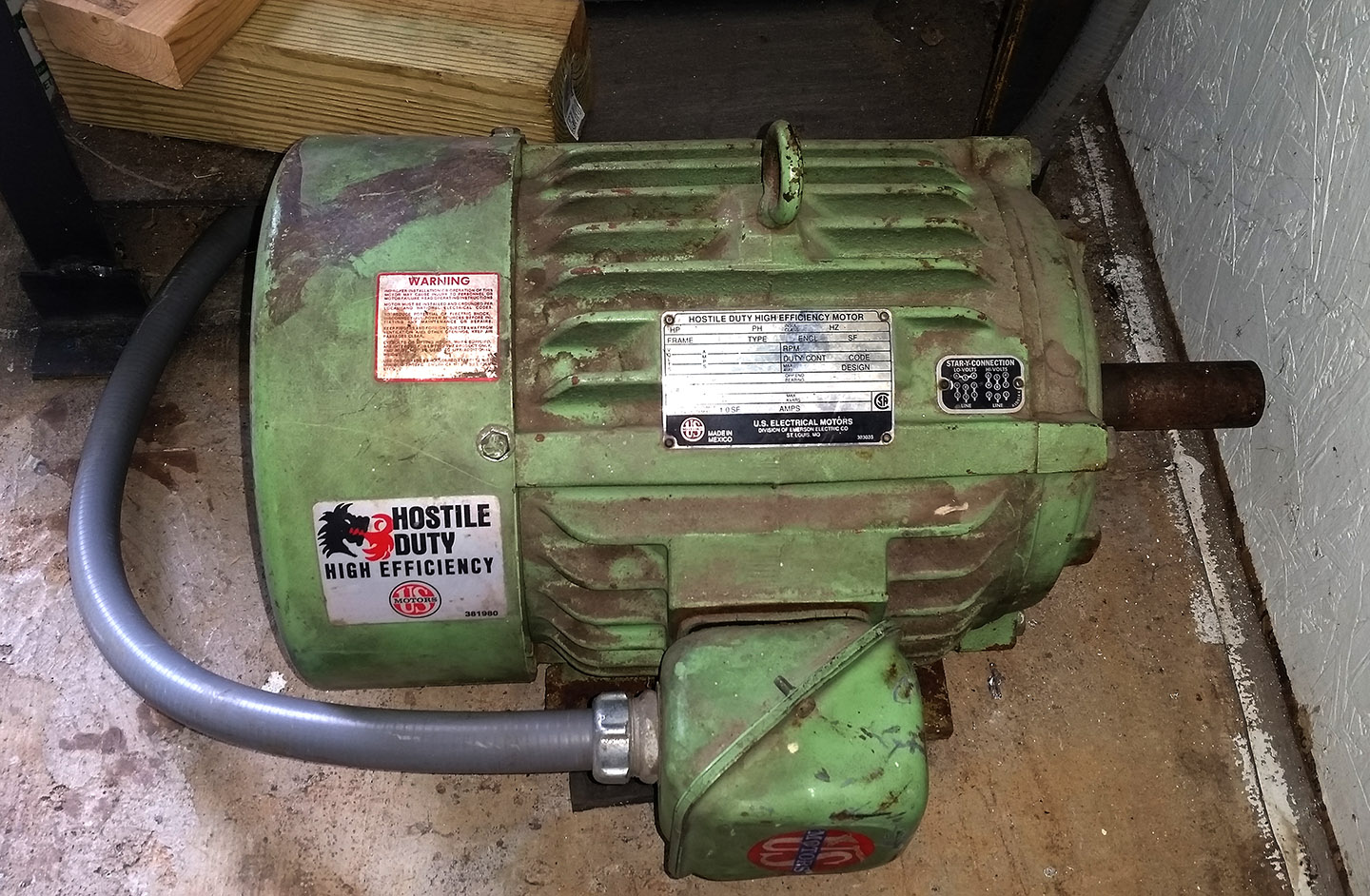

10hp. 3-Phase Rotary Converter - Click on the Images to the Right and see the short Video.
001

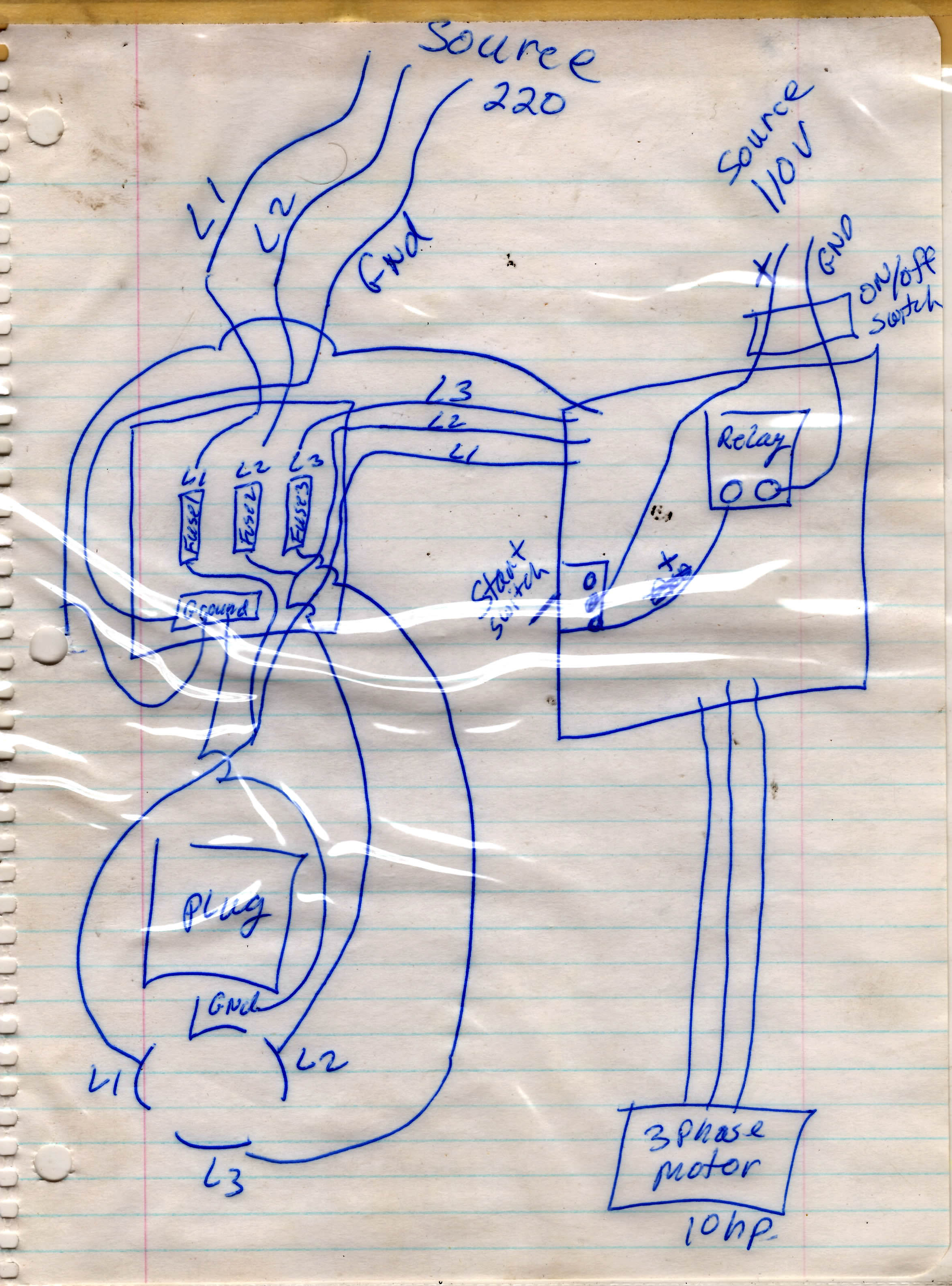

Here is a
Laugh for all you Electrical Engineers/ Technicians/People who know how to read
Schematics.This is the Schematic I made so I remember how to connect this 3-Phase Converter up.
002

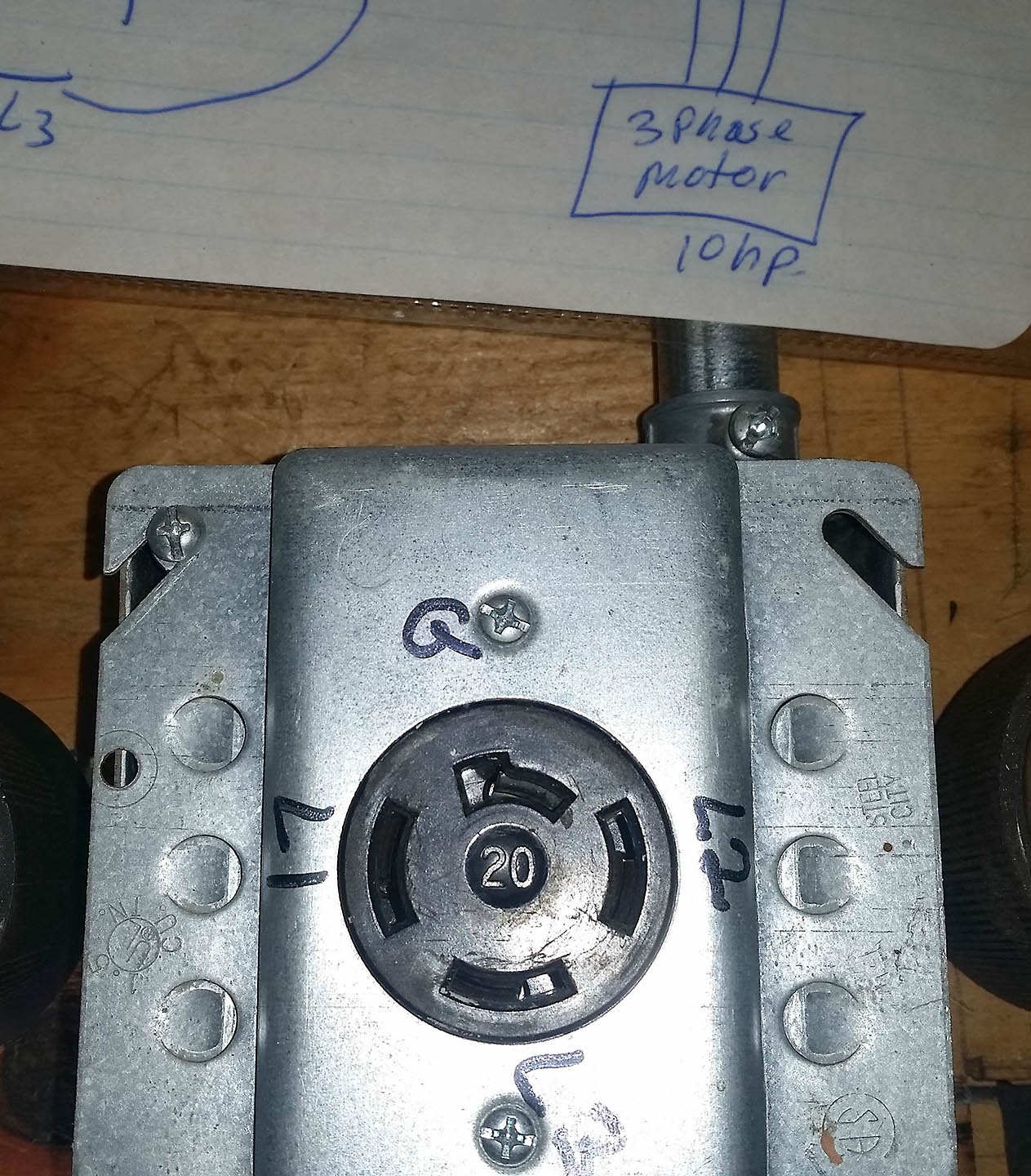

Pictue of the 20amp Female Plug the Tree 325 will plug into for power.
003

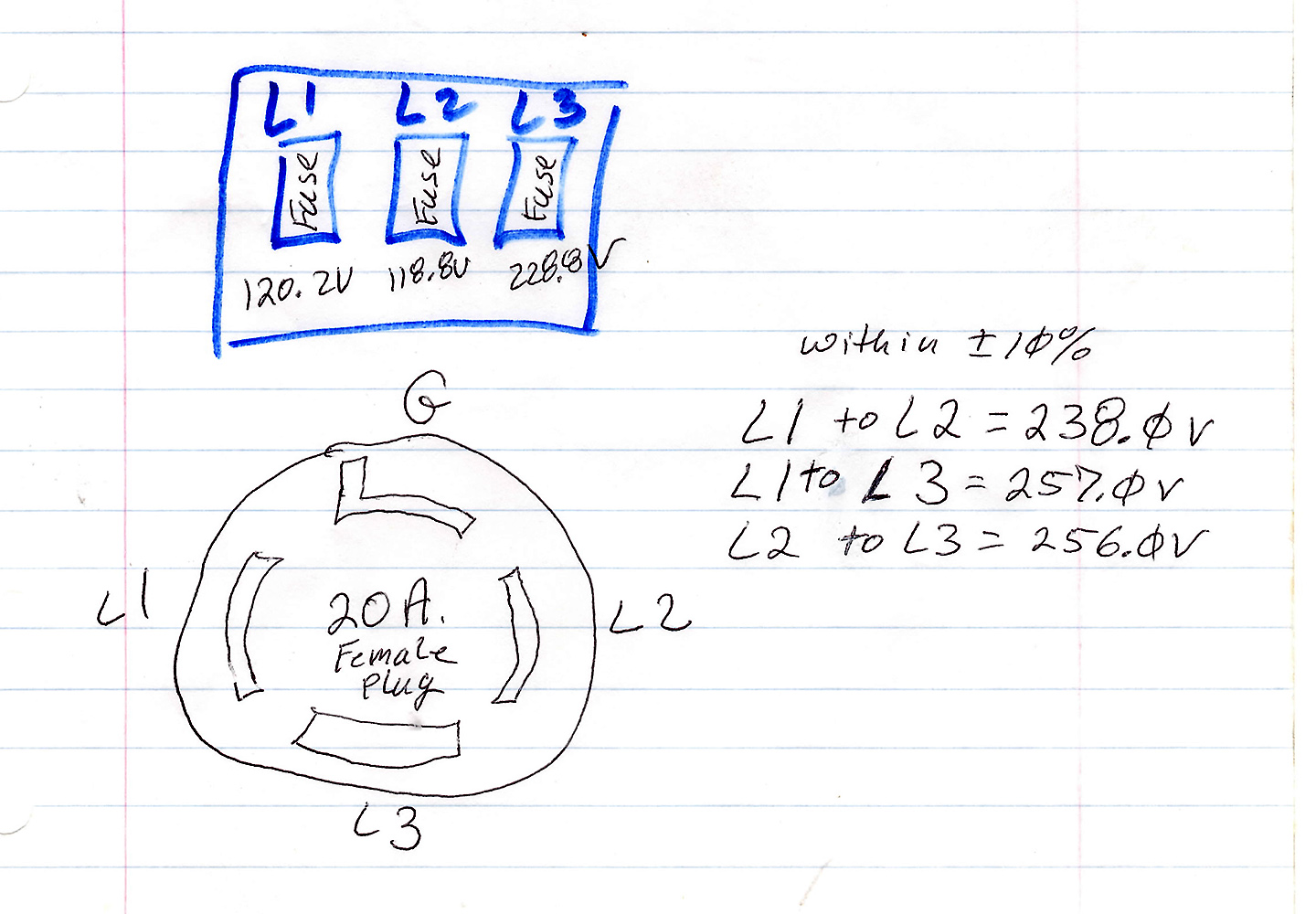

With
the 3-Phase Rotary Converter running and unloaded I check the
voltage across L1 to L2, L1 to L3, and L2 to L3. Here are the
results, well within 10%.
